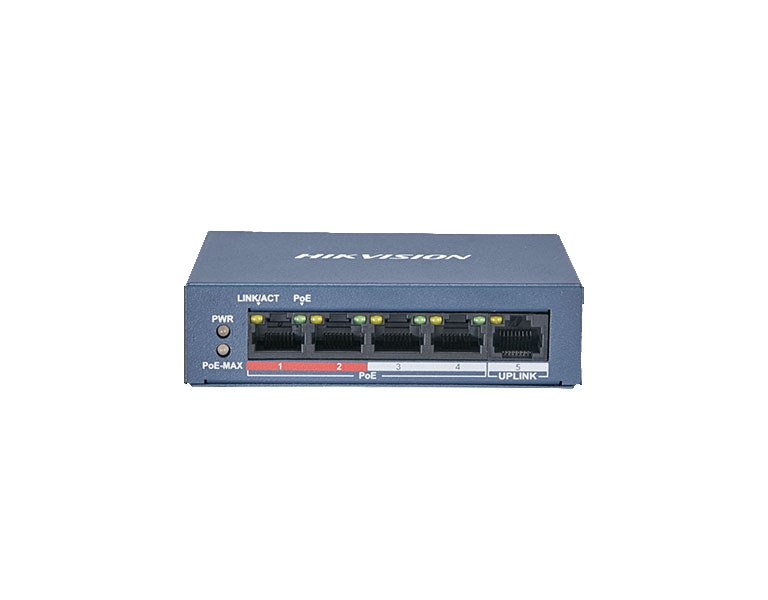

Hikvision DS-3E0105P-E(B) 4 Port Fast Ethernet Unmanaged POE Switch

Product Code:
DS-3E0105P-E(B)
Manufacturer Hikvision
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Hikvision DS-3E0105P-E(B) 4 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Network parameters
Port number 4 x 100 Mbps PoE ports, 1 x 100 Mbps Ethernet port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 2
Ports for long-distance transmission Ports 1 to 4
MAC address table 1 K
Switching capacity 1 Gbps
Packet forwarding rate 0.744 Mpps
Internal cache 448 Kbits
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port Ports 1 to 4
Max. port power 30 W
PoE power budget 60 W
Max. power consumption 65 W
General
Shell Metal material, fan-free design
Gross weight 0.74 kg
Net weight 0.2 kg
Dimension (LxHxD) 105 mm x 27.6 mm x 83.1 mm
Operating temperature -10 °C to 55 °C
Storage temperature -40 °C to 85 °C
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption in idle 5 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
