• (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
• (1) 1G SFP port
• 110W PoE supply when powered with the included AC/DC adapter
• Fanless, thermal cooling for silent operation
• Wall-mountable
• Layer 2 switching features
• Easy, Bluetooth-powered setup via the UISP Mobile app

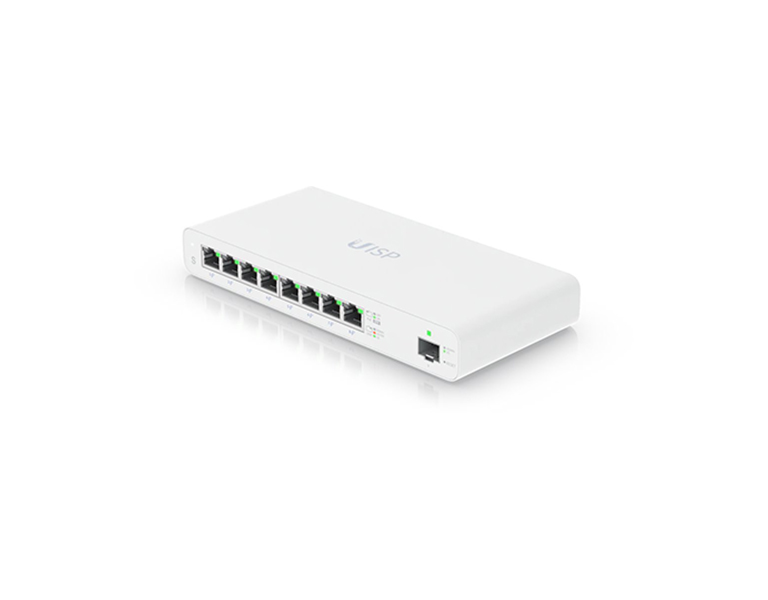

Gigabit PoE switch for MicroPoP applications
Ideal for wireless ISP (WISP) deployments, the UISP Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.

Works with the Ubiquiti Internet Service Provider (UISP) Application
• Centrally manage your networks and customers with ease
• Organize your subscription plans, setup billing and invoicing, and grow your customer base
• View your network's topology, advanced analytics, and more
• Set up devices quickly and manage them on the go with powerful mobile app support

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	210.4 x 95 x 29 mm
Weight	610 g
Enclosure material	Polycarbonate
Hardware
Total non-blocking throughput	9 Gbps
Switching capacity	18 Gbps
Forwarding rate	13.392 Mpps
Networking interface	(8) 10/100/1000 MbE RJ45 ports (1) 1G SFP port
Management interface	Ethernet in-band Bluetooth BLE
Power Method	External AC/DC adapter
Power Supply	27VDC, 4.4A power adapter (included)
Supported voltage range	24 - 28VDC
Max. power consumption	8W (excludes PoE output)
ESD/EMP protection	Air: ± 15 kV, contact: ± 8 kV
Operating temperature	-10 to 50° C (14 to 122° F)
Operating humidity	5 to 95% non-condensing
Certifications	CE,FCC,IC
PoE
PoE interface	(8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port	30W/27VDC
Passive PoE voltage range	27VDC
LEDs
System	Status
RJ45 data ports	PoE, Speed/Link/Activity
SFP data ports	Link/activity
