Wireless Performance
Two models are available:
• airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
- 2.4 GHz radio band Speeds of up to 300 Mbps
- 5 GHz radio band Speeds of up to 866.7 Mbps
• airCube ISP 802.11n, 2x2 MIMO Wi-Fi for speeds of up to 300 Mbps in the 2.4 GHz radio band

Versatile Power Options
Both models offer convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube AC requires the included power adapter or 24V, 1A PoE input.

Intuitive Software
Management options feature a graphical user interface designed for streamlined setup and control.
Available options include:
• UMobile App Supports quick setup and status information.
• Web UI Enables a standalone utility for basic configuration.
• UNMS Provides advanced remote control of Ubiquiti^® devices.

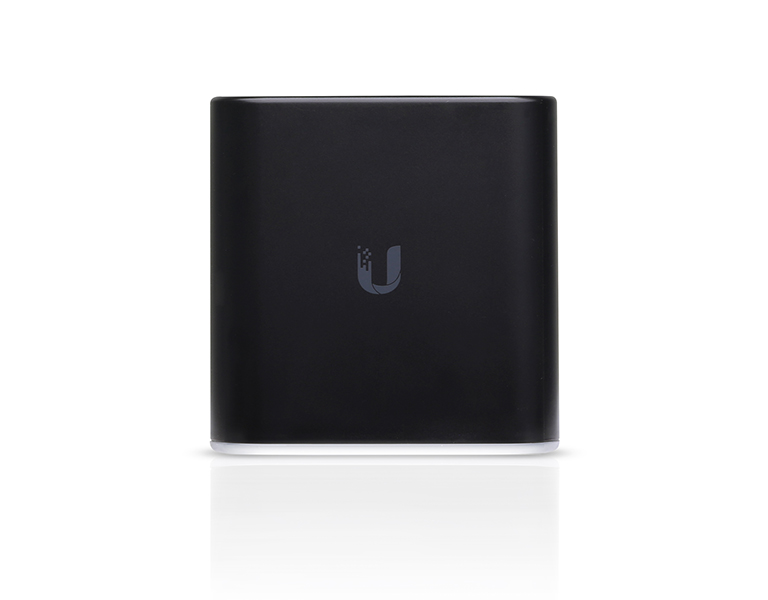

airCube-AC
• (4) Gigabit Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• Dual-Band, 802.11ac, 2x2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Up to 866.7 Mbps in the 5 GHz Radio Band
• Powered by 24V Passive PoE or Included Power Adapter

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	87.80 x 89.50 x 89.25 mm
Weight	280 g
Power Supply	24VDC
Power Method	24VDC, 0.83A or PoE 24V In on LAN Port 1
Supported Power Voltage	22-26V
Max. Power Consumption	8.5W
PoE Out	Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface	Wi-Fi / Ethernet
Networking Interface	(4) Gigabit Ethernet Ports
LED	Status
Max. TX Power	22 dBm
Antenna Gain	2.4 GHz: 4 dBi 5 GHz: 5 dBi
Max. Speeds	2.4 GHz: 300 Mbps 5 GHz: 866.7 Mbps
Enclosure Characteristics	Black Plastic
ESD/EMP Protection	±24 kV Contact / Air
Operating Temperature	-10 to 50° C (-14 to 122° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
