MikroTik RBLHG5KIT LHG 5, 24,5dBi, 802.11an, ROS L3, PoE, 3 Pack
Product Code:
RBLHG5KIT
Manufacturer Mikrotik
Sales price:
230,00 €(Includes 24% VAT)
Sales price without TAX:185,48 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
MikroTik RBLHG5KIT LHG 5, 24,5dBi, 802.11an, ROS L3, PoE, 3 Pack

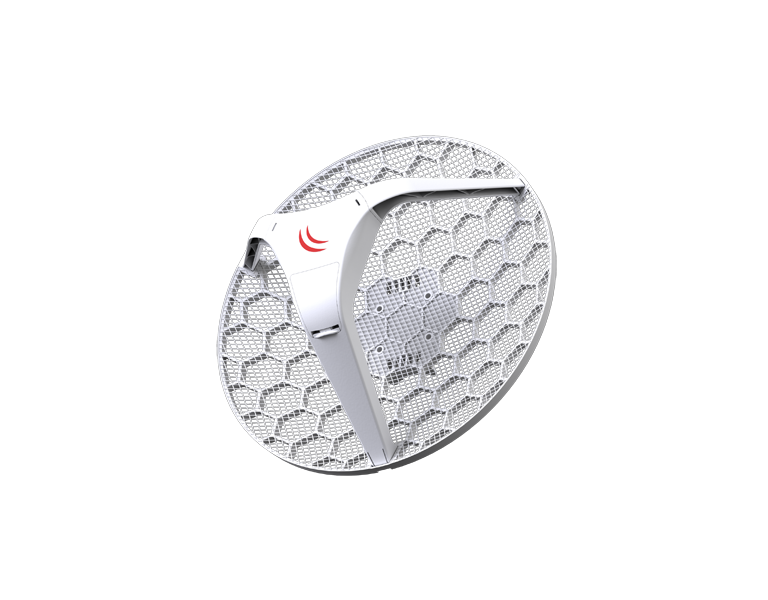

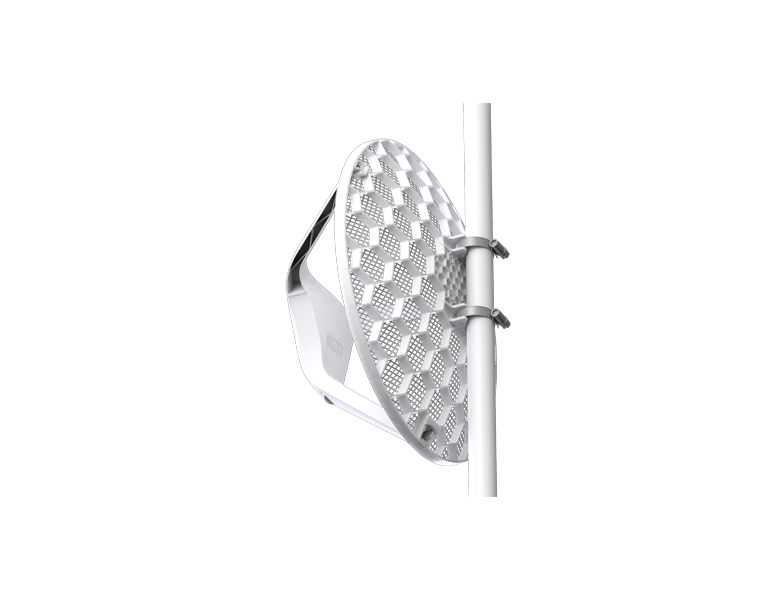

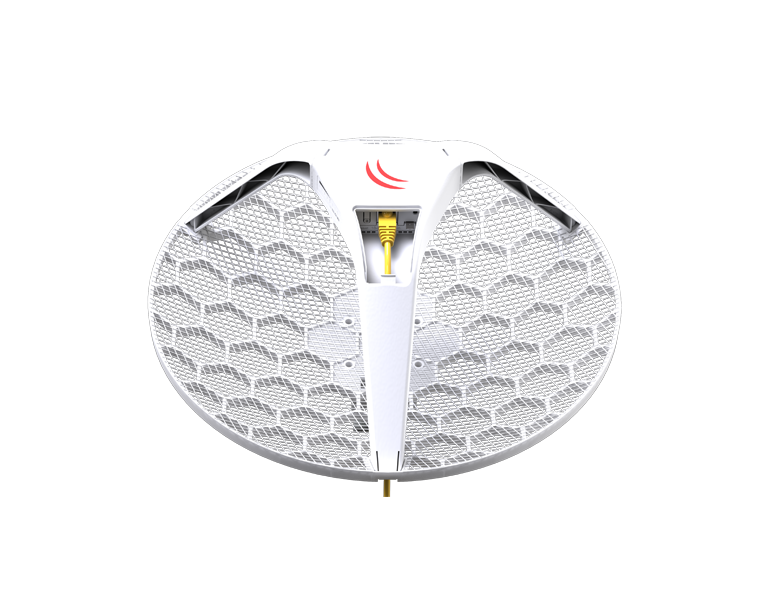

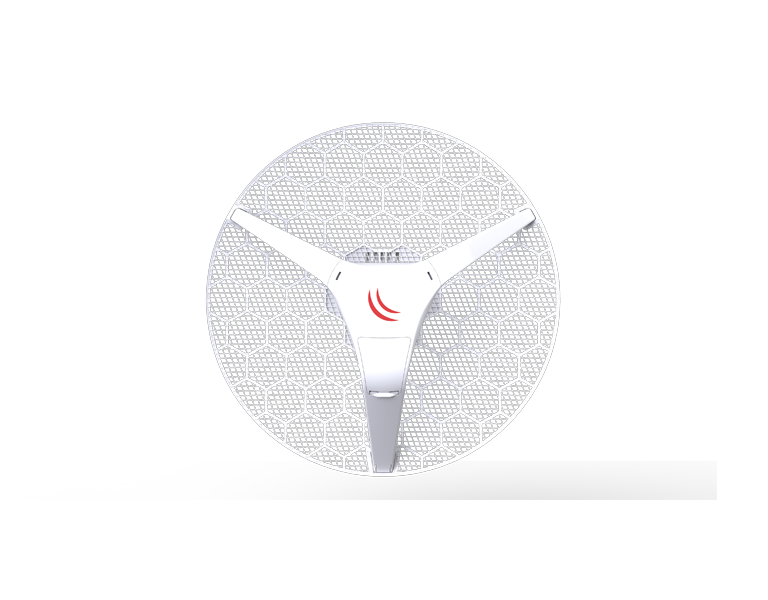

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

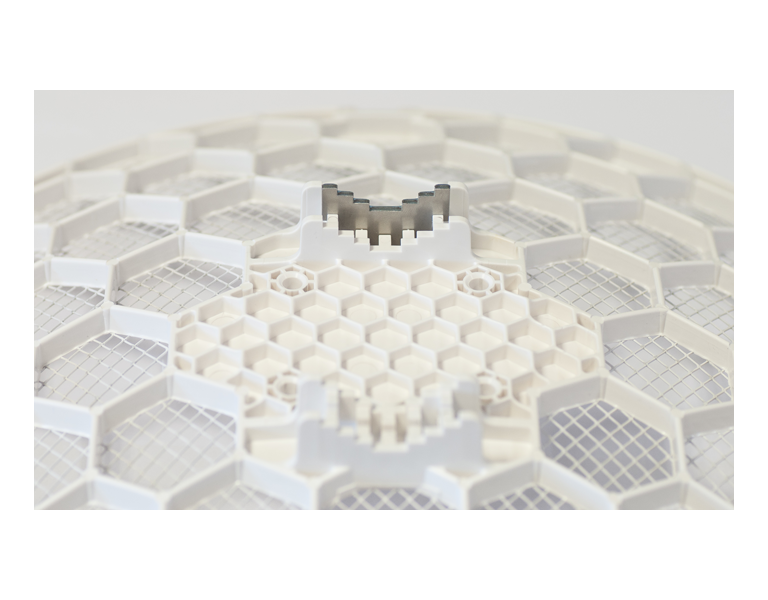

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications |
|
| Product code | RBLHG5KIT |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB Flash |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless regulations | Specific frequency range can be limited by country regulations |
| Wireless chip model | AR9344 |
| Operating frequency | 5150 - 5875 MHz |
| Antenna gain | 24.5 +/- 0.5 dBi |
| Antenna beam width | 7° |
| Cross polar | 15 dBi |
| Port to port isolation | 20 dB |
| Front to back ratio | 25 dB |
| Return loss | 10 dB |
| VSWR | 1.925:1 |
| PoE in | Yes |
| Supported input voltage | 11 V - 30 V (passive PoE) |
| Wind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Operating humidity | 5 to 95% noncondensing |
| Shock and vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| Weight | Unit: 560 g Package: 1.98 kg |
| Max Power consumption | 6 W |
| Wireless specifications | ||
| RATE | Tx (dBm) | Rx (dBm) |
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
