MikroTik RBSXTG-5HPacD-SA, SXT SA5 ac, 2x13dBi Sector, GLAN, PoE, RouterOS L4
Product Code:
RBSXTG-5HPacD-SA
Manufacturer Mikrotik
Sales price:
135,00 €(Includes 24% VAT)
Sales price without TAX:108,87 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews

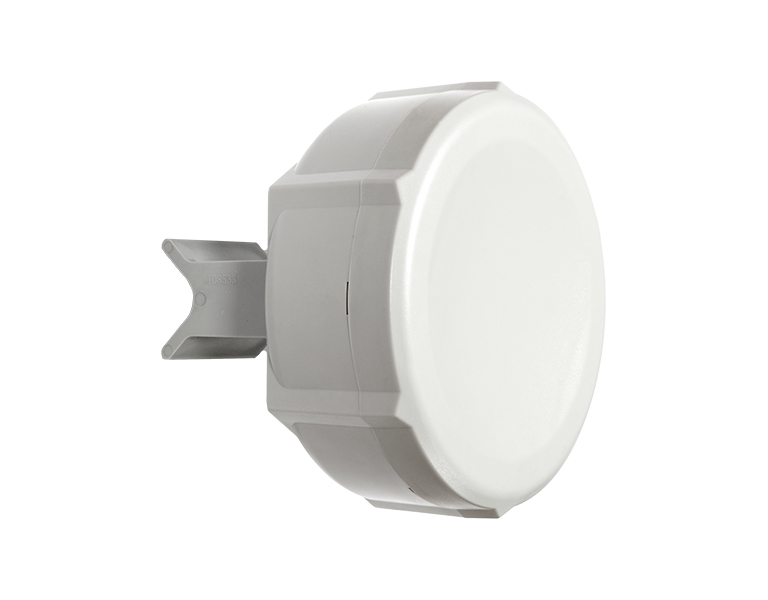

MikroTik RBSXTG-5HPacD-SA, SXT SA5 ac, 2x13dBi Sector, 802.11ac, GLAN, PoE, RouterOS L4
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.
The SXT ac is a new member in 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam - width sector antenna. Also support 802.11a/n standard, Nstreme and Nv2 protocols and are compatible with all legacy RouterBOARD devices. Both devices come with Gigabit Ethernet.
New products are backwards compatible - for example, you can replace your 5GHz 802.11a/n legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

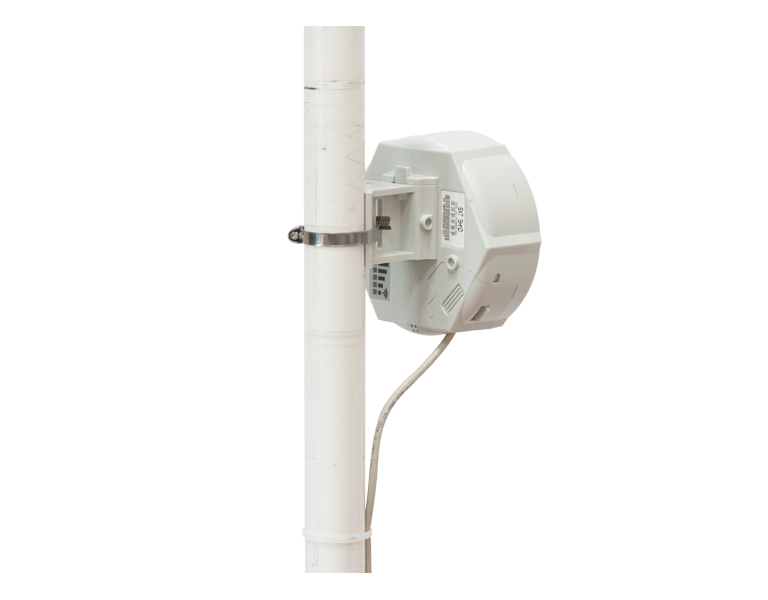

SXT install guide:
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Product code | RBSXTG-5HPacD-SA |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| RouterOS License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Operating temperature | -30°C to 80°C |
| Powering | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Cooling type | Passive |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| Wireless | |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| LEDs | Power LED Ethernet LED 5 wireless signal LED |
| Dimensions | 140x140x56mm |
| Weight | without packaging, adapters and cables: 265g |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
