• 802.11ac for up to 867Mbps on 5GHz wireless data rate*¹• 23dBi high-gain directional 2×2 MIMO, ideal for long-range wireless transmission up to 30km*²• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability*³• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Stable Outdoor Wi-Fi for Long-Distance Transmission

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.*¹

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking transmission up to 30 km*².

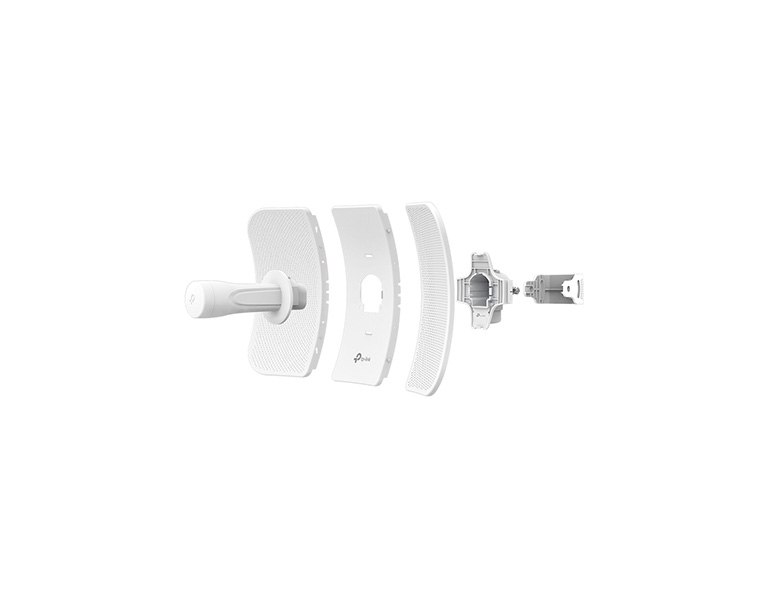

Stable Structural Design and Flexible Installation

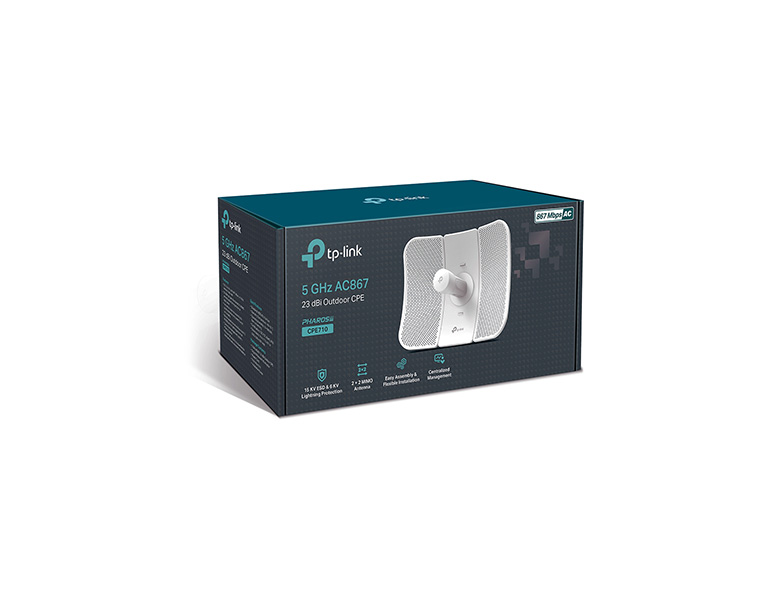

Compact and Lightweight Packaging
Small and lightweight boxes
benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Features & Performance
Model	CPE710 V2.0
Name	5GHz 867Mbps 23dBi Outdoor CPE
Package Contents	Outdoor CPE 24 V Passive PoE Adapter AC Power Cord Mounting Kits Quick Installation Guide
Hardware Feature
Processor	Qualcomm 750 MHz CPU, MIPS 74 Kc
Memory	128 MB DDR2 RAM, 16 MB Flash
Antenna Gain	23 dBi
Beamwidth	9° (Azimuth) / 7° (Elevation)
Interfaces	10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power Supply	24 VDC / 0.5 A Passive PoE (+4,5 pins; -7,8 pins)
Dimensions (L x W x H)	207 × 280 × 366 mm
Protection4	15 kV ESD Protection 6 kV Lightning Protection
Enclosure	Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
Features & Performance
Wireless Standards	IEEE 802.11a/n/ac
Proprietary Protocol	/
Frequency5	5.15-5.85 GHz
Wireless Speed6	Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic)
Maximum Transmit Power7	27 dBm (Adjustable power by 1 dBm)
Software Feature
Operation Mode	AP / Client / AP Router / AP Client Router (WISP Client)
Network Configurations	WAN: Static / Dynamic / PPPoE / L2TP / PPTP (CPE210 / CPE220 / CPE510 / CPE605 / CPE610 supports L2TP / PPTP) LAN: Static / Dynamic / DHCP IPv6 Forwarding: ALG / UPnP / Virtual Server / Port Trigger Security: SPI Firewall / Ping Forbidden / DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Software Feature
System-level Optimizations	IGMP Snooping / Proxy for multicast applications
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for better experience: Google Chrome, Safari, Firefox. IE browsers are not recommended
Others
Certifications	CE, FCC, RoHS, IP65, IC
Environment	Operating Temperature: -40 °C~70 °C Storage Temperature: -40 °C~70 °C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
