Revolutionary Design

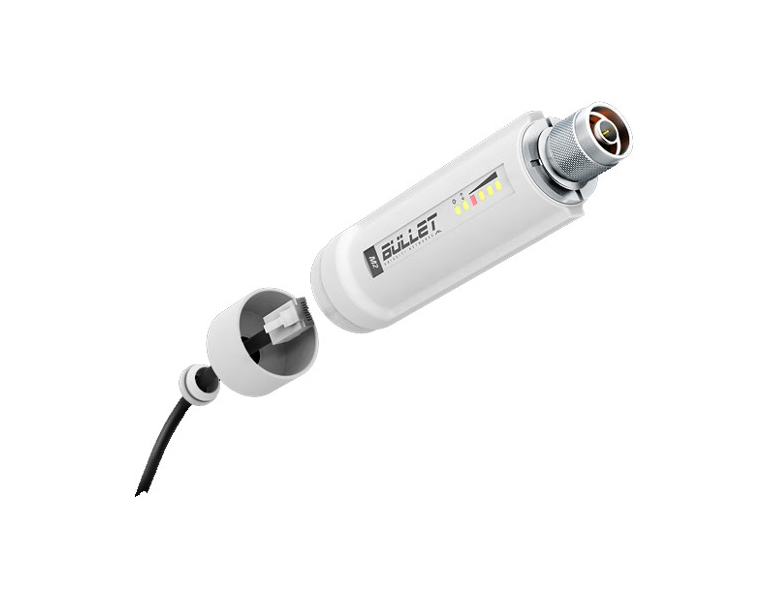

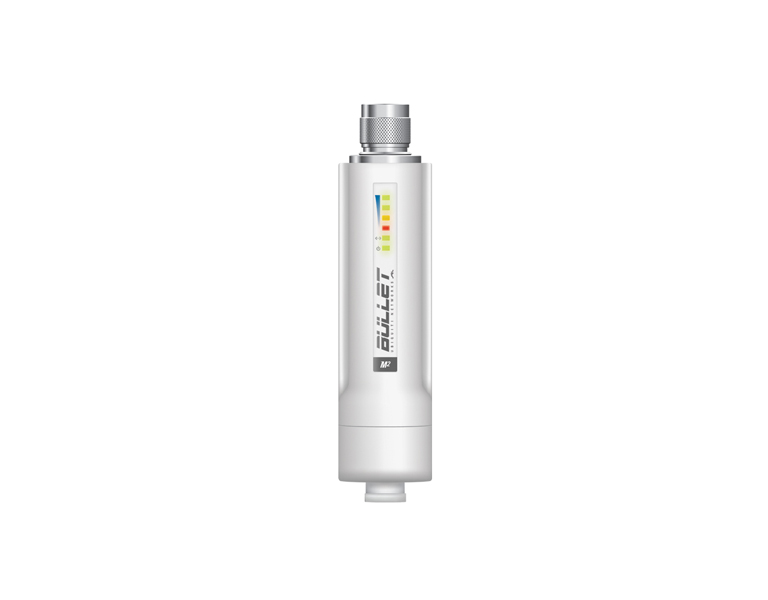

Bullet M is the latest version of the popular Ubiquiti Bullet. Like its predecessor, Bullet M is a wireless radio with an integrated Type N RF connector that can be directly plugged in to any Antenna to create a powerful and robust outdoor Access Point, Client, or Bridge.

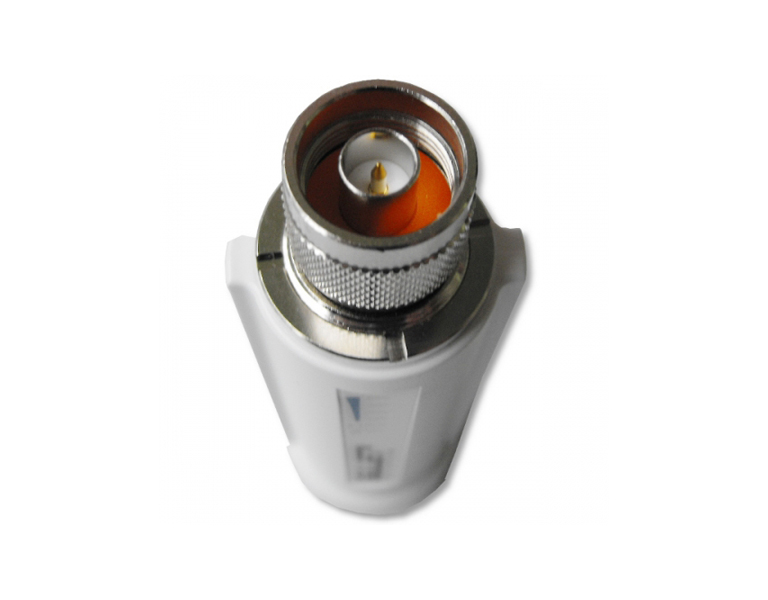

The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design.
With up to 600mW of power and enhanced receiver design, the Bullet M is ideal for long-distance links, capable of 100Mbps+ real TCP/IP speeds over multi-km distances.

Zero Variable Deployment
Bullet M eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet M, operators can just plug and go.

Integrated AirMax Technology
The Bullet M can instantly become a powerful TDMA BaseStation utilizing Ubiquiti's breakthrough AirMax technology. With AirMax, PtMP networks can scale gracefully while maintaing high throughput and low latency performance.

Software
airOS
AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking.
Protocol Support
Ubiquiti Channelization
Spectral Width Adjust
ACK Auto-Timing
AAP Technology
Multi-Language Support

airView
Integrated on all Ubiquiti M products, AirView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
Waterfall Aggregate energy over time for each frequency.
Waveform Aggregate energy collected.
Real-time Energy is shown real-time as a function of frequency.
Recording Automize AirView to record and report results.

airControl
AirControl is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiquiti devices.
Network Map
Monitor Device Status
Mass Firmware Upgrade
Web UI Access Manage
Groups of Devices
Task Scheduling

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Processor Specs	Atheros MIPS 24KC, 400MHz
Memory Information	32MB SDRAM, 8MB Flash
Networking Interface	1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	YES
RF Connector	Integrated N-type Male Jack (connects directly to antenna)
Enclosure Size	15.2 x 3.7 x 3.1 cm (length, width, height)
Weight	0.18kg
Enclosure Characteristics	Outdoor UV Stabilized Plastic
Power Rating	Up to 24V
Power Method	Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature	-40C to 80C
Operating Humidity	5 to 95% Condensing
Shock and Vibration	ETSI300-019-1.4
Max Power Consumption	7 Watts
Outdoor (Antenna Dependent)	Over 50km

Operating Frequency 2412-2462 MHz OUTPUT POWER: 25 dBm
2.4 GHz TX POWER SPECIFICATIONS
	DataRate	Avg. TX	Tolerance
11b/g	6-24 Mbps	28 dBm	+/- 2 dB
	36 Mbps	25 dBm	+/- 2 dB
	48 Mbps	24 dBm	+/- 2 dB
	54 Mbps	23 dBm	+/- 2 dB

11n	MCS0	28 dBm	+/- 2 dB
	MCS1	28 dBm	+/- 2 dB
	MCS2	28 dBm	+/- 2 dB
	MCS3	28 dBm	+/- 2 dB
	MCS4	27 dBm	+/- 2 dB
	MCS5	25 dBm	+/- 2 dB
	MCS6	23 dBm	+/- 2 dB
	MCS7	22 dBm	+/- 2 dB
2.4 GHz RX POWER SPECIFICATIONS
	DataRate	Sensitivity	Tolerance
11b/g	24 Mbps	-83 dBm	+/- 2 dB
	36 Mbps	-80 dBm	+/- 2 dB
	48 Mbps	-77 dBm	+/- 2 dB
	54 Mbps	-75 dBm	+/- 2 dB

11n	MCS0	-96 dBm	+/- 2 dB
	MCS1	-95 dBm	+/- 2 dB
	MCS2	-92 dBm	+/- 2 dB
	MCS3	-90 dBm	+/- 2 dB
	MCS4	-86 dBm	+/- 2 dB
	MCS5	-83 dBm	+/- 2 dB
	MCS6	-77 dBm	+/- 2 dB
	MCS7	-74 dBm	+/- 2 dB
