Ubiquiti Networks launches the latest generation of airMAX^® CPE (Customer Premises Equipment), the LiteBeam^® 5AC Gen 2, with dedicated Wi-Fi management.

Improved Noise Immunity
The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
Ubiquiti’s InnerFeed^® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Software
airOS 8
airOS^® v8 is the revolutionary operating system for Ubiquiti^® airMAX ac products.

Powerful Wireless Features
• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancements
• airMagic^® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView^® Spectrum Analyzer

UNMS App
The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi
The UNMS™ app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play™ (Android). UNMS allows you to set up, configure, and manage the LiteBeam 5AC Gen 2. It offers the following options once you're connected or logged in to the device:
Status Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2.
Configuration Change or update the existing configuration of the LiteBeam 5AC Gen 2.
Tools Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2.
Actions Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen 2.

Models:
The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges. There are two models available:
Model: LBE-5AC-Gen2 The LBE-5AC-Gen2 features a robust mount with separate azimuth and elevation adjustments.

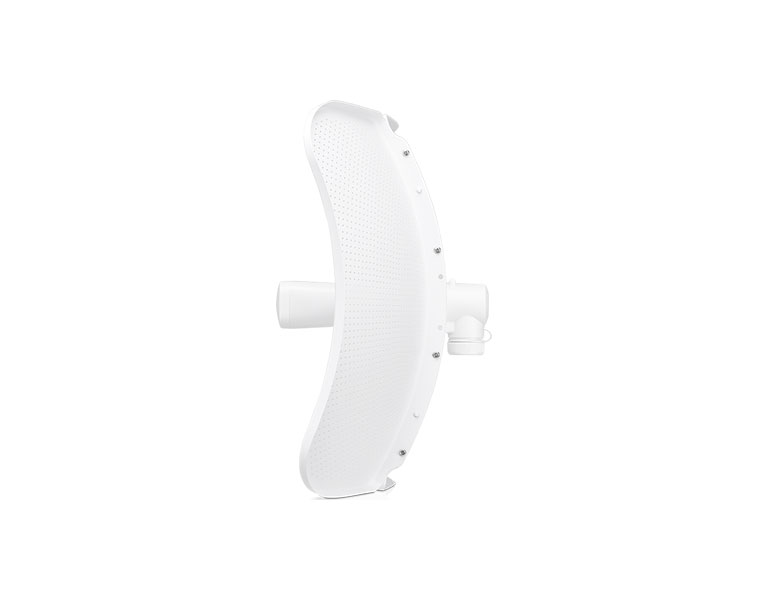

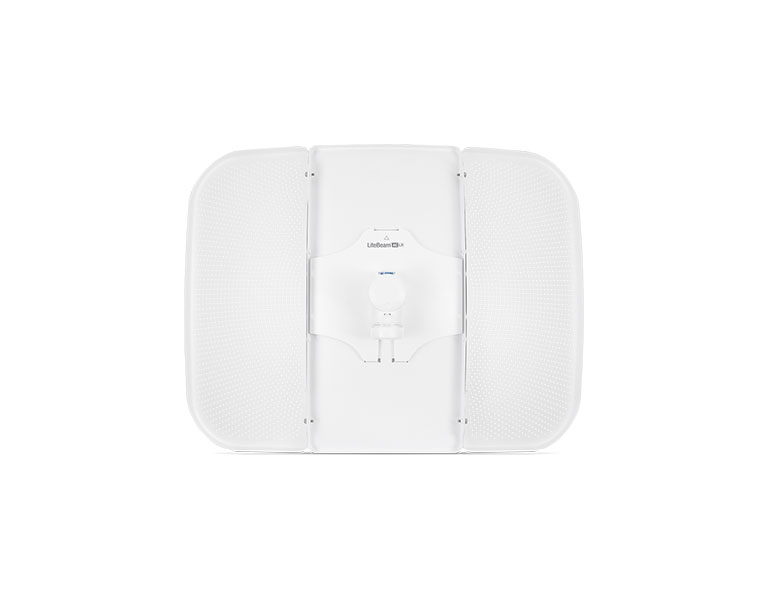

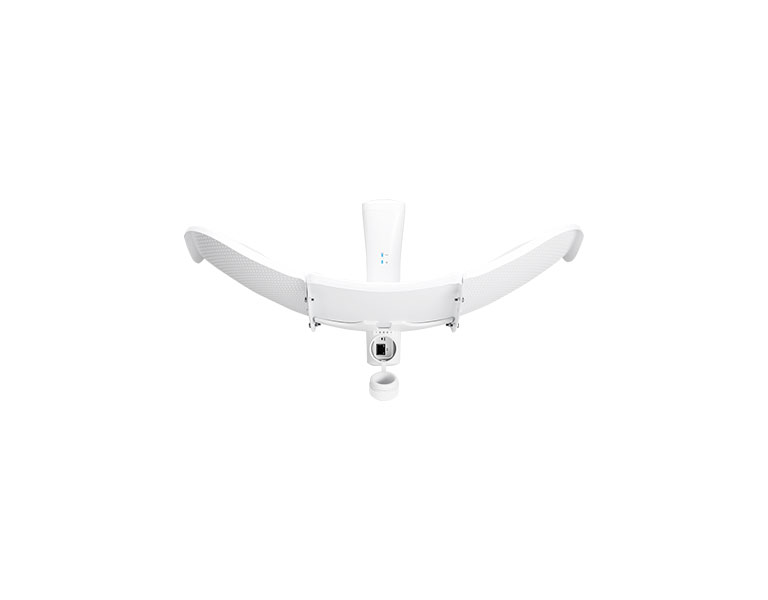

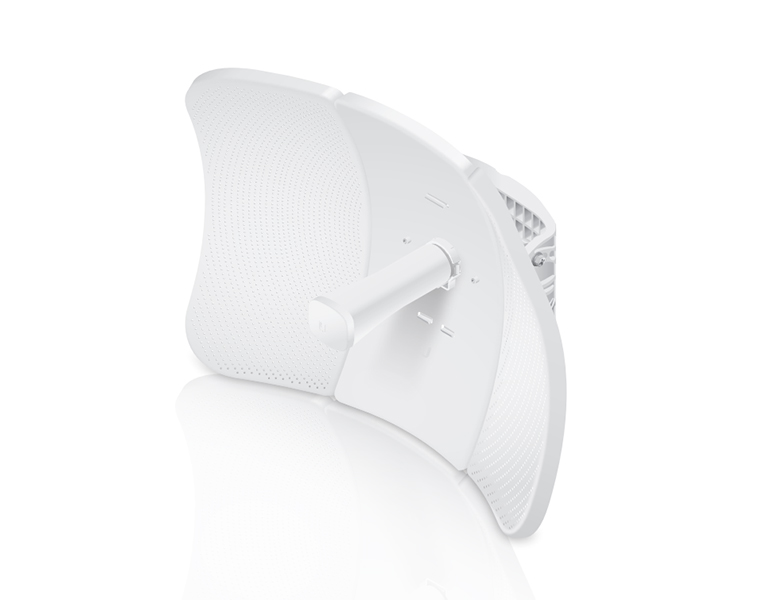

Model: LBE-5AC-LR Designed for long-range applications, the LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	512.5 x 385.75 x 258.3 mm
Weight Without Mount With Mount	1.360 kg 1.735 kg
Power Supply	24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption	7W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range	24V ± 10%
Gain	26 dBi
Networking Interface	(1) 10/100/1000 Ethernet Port
Processor Specs	MIPS 74Kc
Memory	64 MB DDR2
LEDs	Power, Ethernet
Channel Sizes	PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics	Reflector (Aluminum) / Plastic: PC
Mounting	Pole-Mounting Kit (Included)
Wind Loading	550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	± 24 kV Contact / Air
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)	5150 - 5875
Management Radio (MHz)	2412 - 2472
