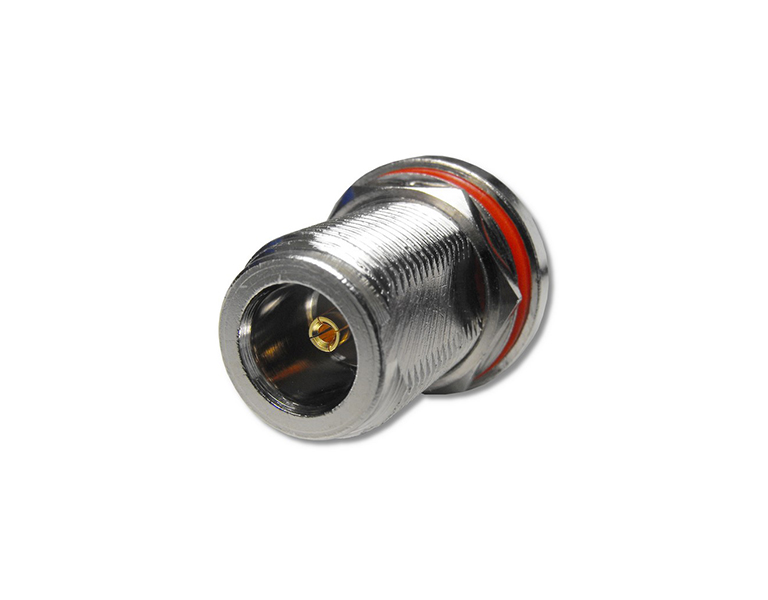

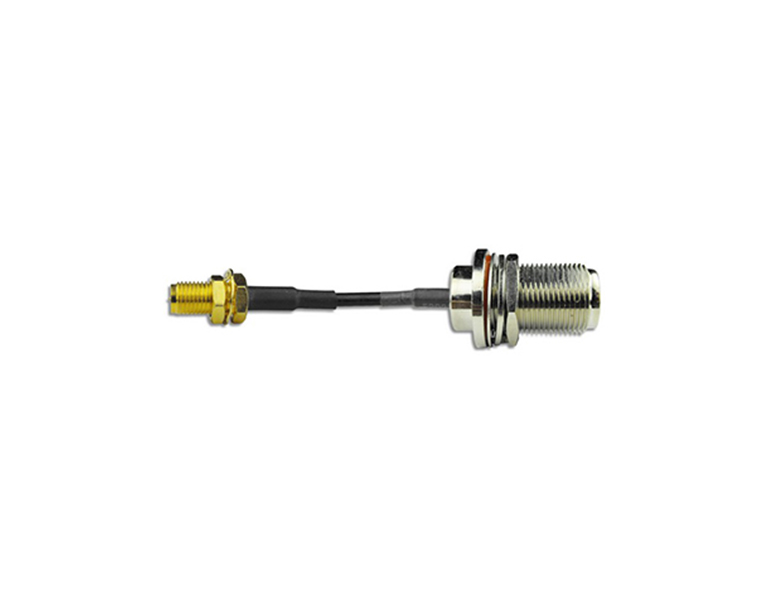

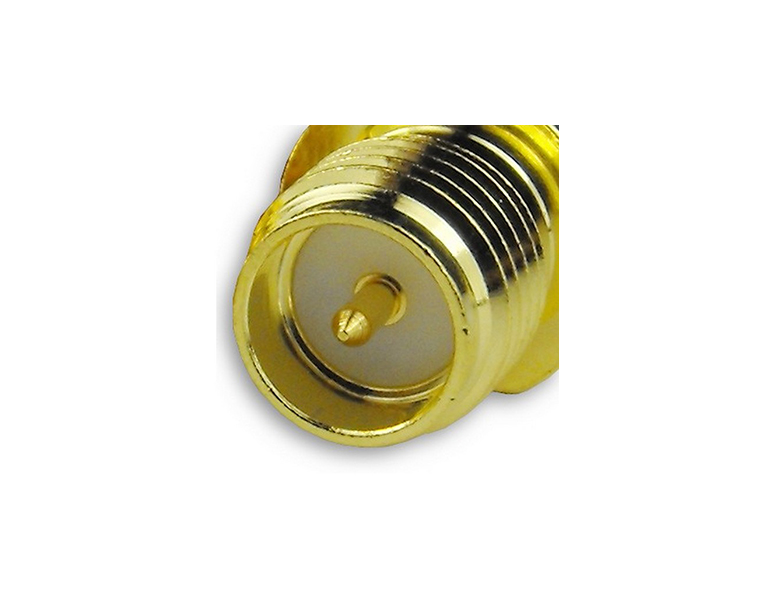

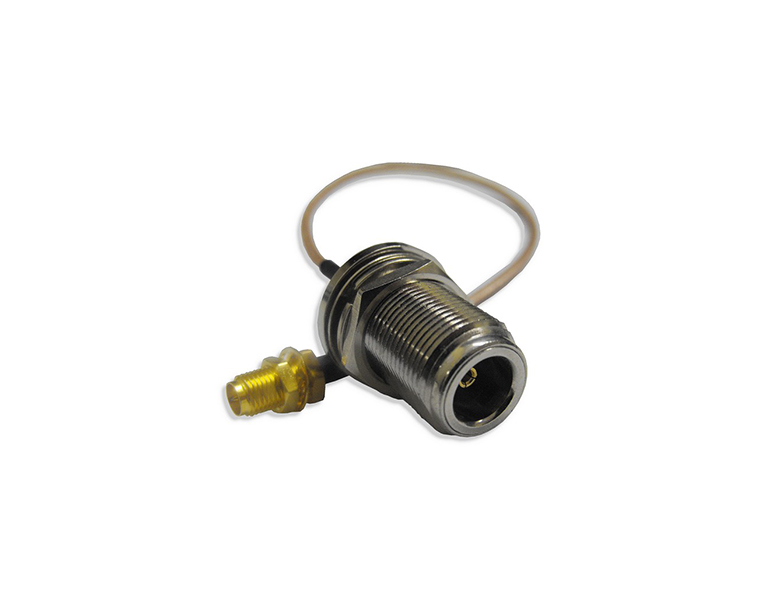

E-zy EZ-RPSMAB2NB25 RP-SMA Bulkhead to N-Type Bulkhead 25cm

Product Code:
EZ-RPSMAB2NB25
Manufacturer E-zy
Sales price: 11,00 €(Includes 24% VAT)
Sales price without TAX:8,87 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
E-zy EZ-RPSMAB2NB25 RP-SMA Bulkhead to N-Type Bulkhead 25cm

RP-SMA Bulkhead to N-Type Bulkhead 25cm.
RP-SMA to N-Type Series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The RP-SMA to N-Type series pigtail is impedance matched to 50 ohm cables.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months




Specifications
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss <2,5 dB
Insulation Resistance 5,000 Megohms min
Connector Body (RP-SMA/N-Type) (Gold/Nickel) Plated
Center Pin Gold Plated
Dielectric Teflon
O-Ring Present
Cable Type LLC100
