E-zy EZ-RPSMAP2NM50 RP-SMA Plug to N-Type Male 50cm
Product Code:
EZ-RPSMAP2NM50
Manufacturer E-zy
Sales price:
7,50 €(Includes 24% VAT)
Sales price without TAX:6,05 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Reviews

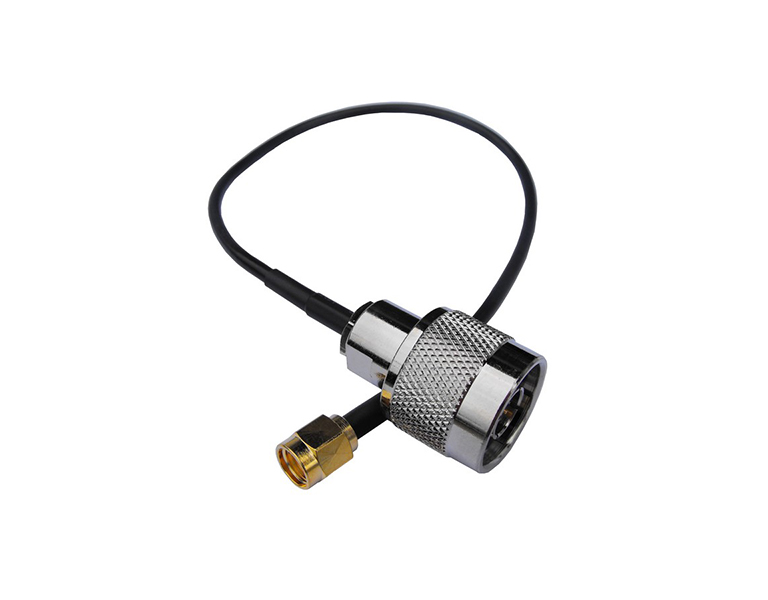

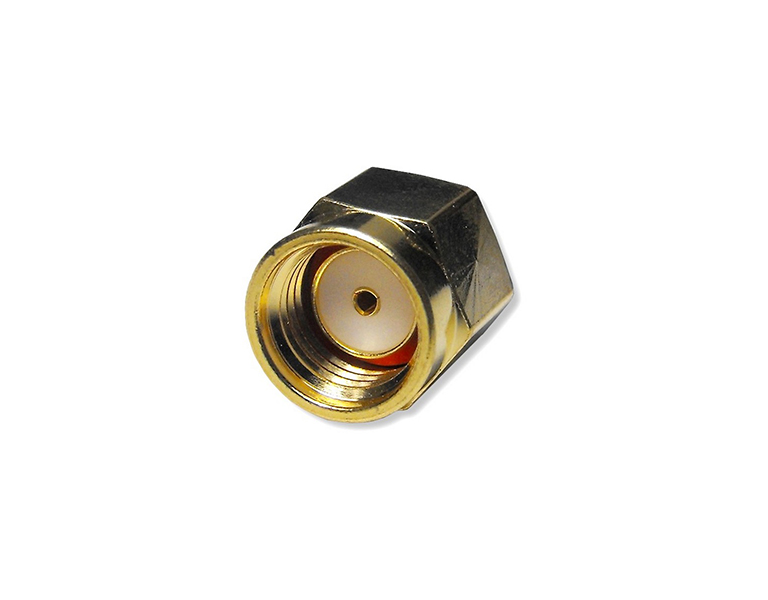

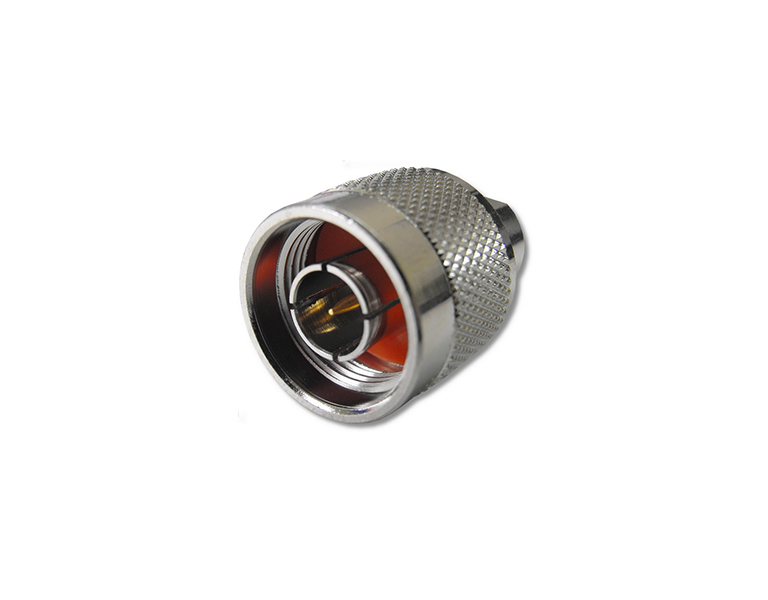

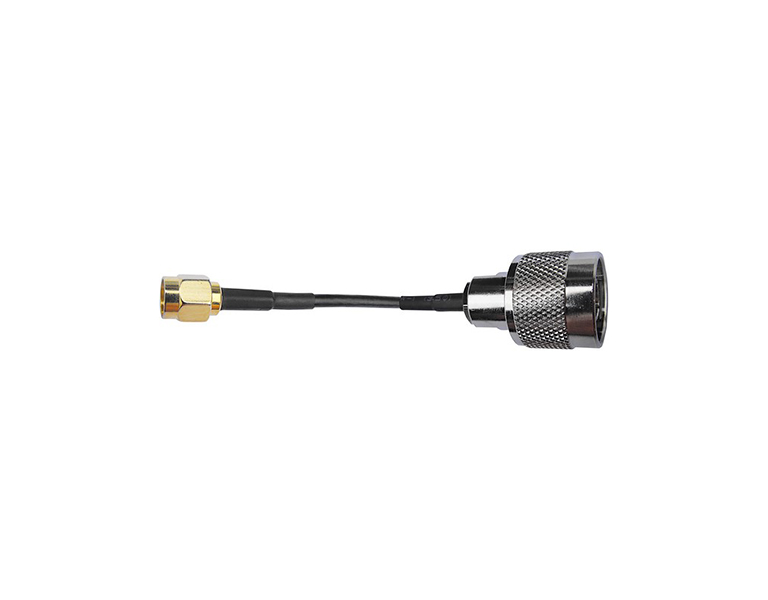

E-zy EZ-RPSMAP2NM50 RP-SMA Plug to N-Type Male 50cm
RP-SMA Plug to N-Type Male 50cm.
RP-SMA to N-Type Series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The RP-SMA to N-Type series pigtail is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body (RP-SMA/N-Type) | (Gold/Nickel) Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Not Present |
| Cable Type | LLC100 |
