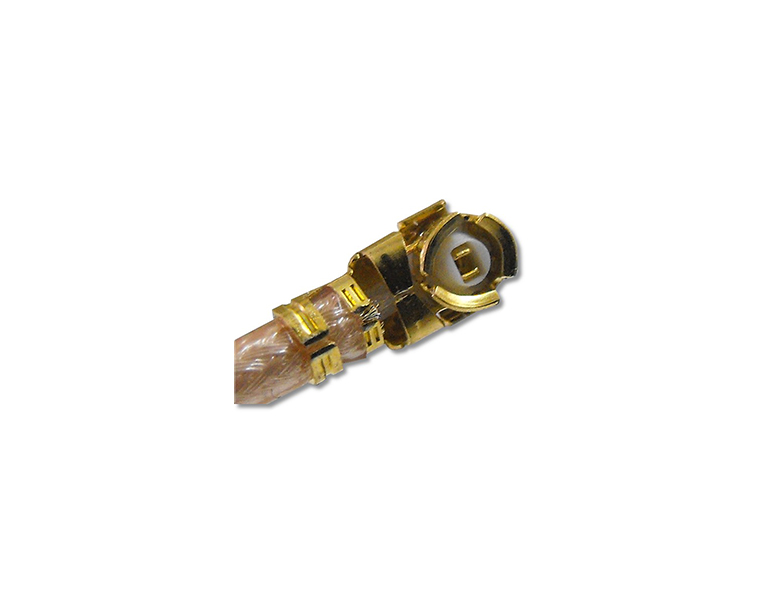

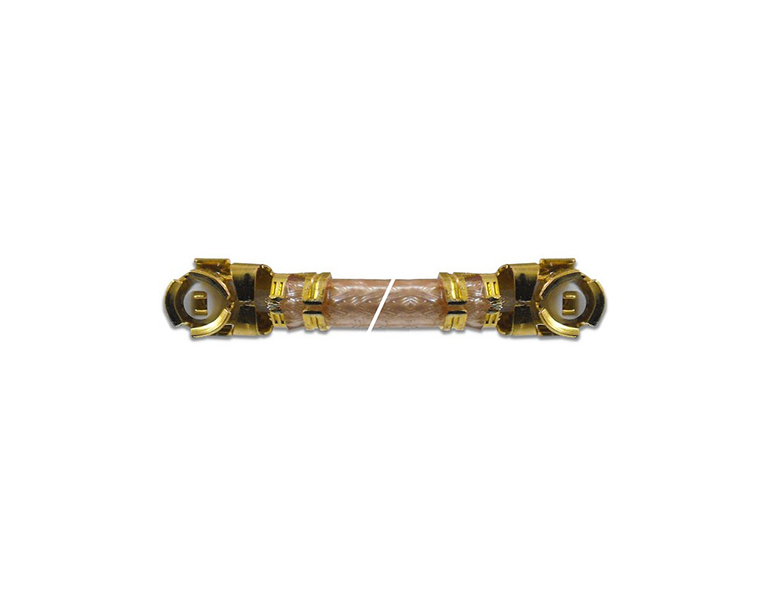

E-zy EZ-UFL2UFL Pigtail U.FL/MHF to U.FL/MHF 50cm
U.FL/MHF to U.FL/MHF 50cm.
UFL to UFL series coaxial pigtails have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The UFL to UFL series pigtail is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 6 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | <2,5 dB |
| Insulation Resistance | 5,000 Megohms min |
| Connector Body (UFL/UFL) | (Gold/Gold) Plated |
| Center Pin | Gold Plated |
| Dielectric | Teflon |
| O-Ring | Not Present |
| Cable Type | RG178 |
