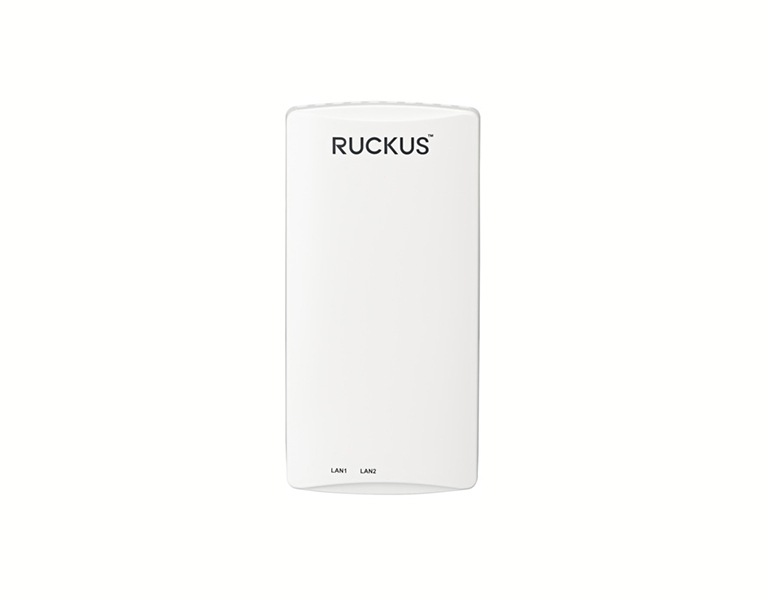

Ruckus H350 Indoor Wi-Fi 6 Access Point

Product Code:
H350
Manufacturer Ruckus
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Ruckus H350 Entry-Level Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate, Switch and Embedded IoT
The RUCKUS H350 wall-mounted access point, IoT gateway, and Ethernet switch make it easy to support in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with two-ports of Gigabit Ethernet to connect in-room wired devices, without extra cabling and add supports for Zigbee or Bluetooth Low Energy. Put it all in a sleek, low-profile design that can be discretely installed over a standard electrical outlet.
The RUCKUS H350 delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking without breaking the bank. The AP features the patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences. But it provides them in an entry-level product built for smaller venues with limited device diversity.

Features:

GREAT ALL-IN-ONE: WI-FI 6, IoT, WIRED PORTS
Deliver great in-room Wi-Fi and enable consolidated IP services with Wi-Fi 6 speed, BLE or Zigbee, and a built-in 2-port Gigabit Ethernet switch.

STUNNING WI-FI PERFORMANCE
Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience.

IoT ON BOARD
Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network

MESH NETWORKING
Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.

AFFORDABLE ENTERPRISE PERFORMANCE
The H350 delivers unprecedented price/performance

KEEP EXISTING SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.

MULTIPLE UNIFIED MANAGEMENT OPTIONS
Manage the H350 from the cloud, with on-premises physical/virtual appliances, or without a controller.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days Lifetime
WI-FI
Wi-Fi Standards · IEEE 802.11a/b/g/n/ac/ax
Supported Rates · 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80)
· 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80)
· 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
· 802.11a/g: 6 to 54 Mbps
· 802.11b: 1 to 11 Mbps
Supported Channels · 2.4Ghz: 1-13
· 5Ghz: 36-64, 100-144, 149-165
MIMO · 2x2 SU-MIMO
· 2x2 MU-MIMO
Spatial Streams · 2 Streams SU/MU-MIMO (2.4Ghz & 5Ghz)
Radio Chains and Streams · 2x2:2 (2.4Ghz & 5Ghz)
Channelization · 20, 40, 80MHz
Security · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3- Enterprise, 802.11i, Dynamic PSK, OWE
· WIPS/WIDS
Other Wi-Fi Features · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
· Captive Portal
· Hotspot
· Hotspot 2.0
· WISPr
RF
Antenna Type · BeamFlex+ adaptive antennas with polarization on diversity
· Adaptive antenna that provides multiple unique antenna patterns
Antenna Gain (max) · Up to 1dBi
Peak Transmit Power (Tx port/chain + Combining gain) · 2.4GHz: 19dBm
· 5GHz: 22dBm
Frequency Bands · ISM (2.4-2.484GHz)
· U-NII-1 (5.15-5.25GHz)
· U-NII-2A (5.25-5.35GHz)
· U-NII-2C (5.47-5.725GHz)
· U-NII-3 (5.725-5.85GHz)
PERFORMANCE AND CAPACITY
Peak PHY Rates · 2.4GHz: 574 Mbps
· 5GHz: 1200 Mbps
Client Capacity · Up to 512 clients per AP
SSID · 8 Per radio
RUCKUS RADIO MANAGEMENT
Antenna Optimization · BeamFlex+
· Polarization Diversity with Maximal Ratio Combining (PDMRC)
Wi-Fi Channel Management · ChannelFly
· Background Scan Based
Client Density Management · Adaptive Band Balancing
· Client Load Balancing
· Airtime Fairness
· Airtime-based WLAN Prioritization
SmartCast Quality of Service · QoS-based scheduling
· Directed Multicast
· L2/L3/L4 ACLs
Mobility · SmartRoam
Diagnostic Tools · Spectrum Analysis
· SpeedFlex
NETWORKING
Controller Platform Support · SmartZone
· ZoneDirector
· Unleashed1
· Standalone
· Cloud
Mesh · SmartMesh wireless meshing technology. Self-healing Mesh
IP · IPv4, IPv6, dual-stack
VLAN · 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
· VLAN Pooling
· Port-based
802.1x · Authenticator & Supplicant
Tunnel · L2TP, GRE, SoftGRE
Policy Management Tools · Aplication Recognition and Control
· Access Control Lists
· Device Fingerprinting
· Rate Limiting
IoT Capable · Integrated BLE and Zigbee (1 radio, switchable)
PHYSICAL INTERFACES

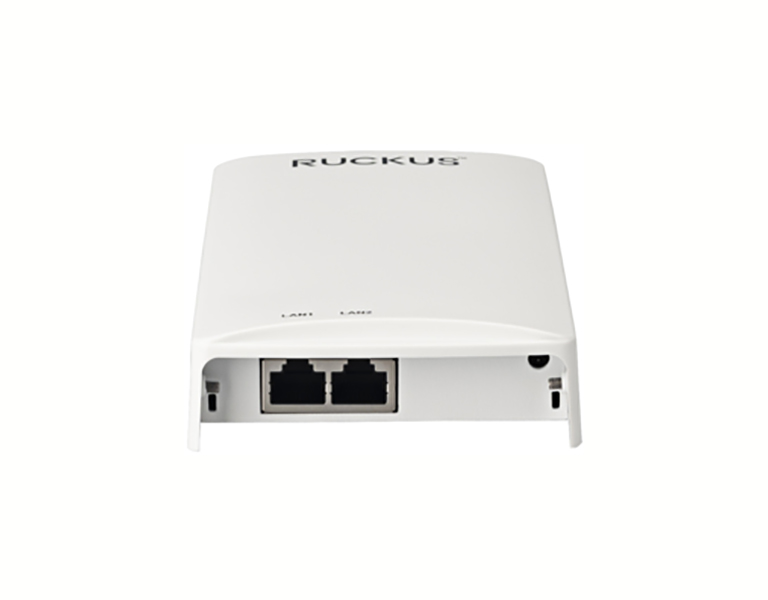

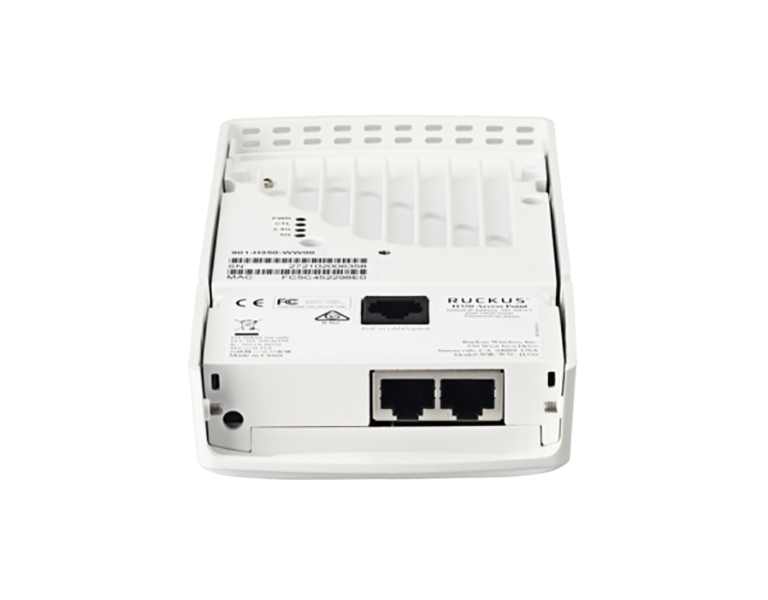

Ethernet · 1x 1GbE port, RJ-45, PoE In – 802.3af Class 3
· 2x 1GbE ports, RJ-45
PHYSICAL CHARACTERISTICS
Physical Size · 89.5 mm (W) x 178.5 mm (L), 29.3 mm (H)
Weight · 276g without bracket
· 346g with bracket
Mounting · Electrical wallbox; Standard US and EU single gang wall jack
· Optional bracket for offset & wall mount
Operating Temperature · 0ºC - 40ºC
Operating Humidity · Up to 95%, non-condensing
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance3 · Wi-Fi CERTIFIED a, b, g, n, ac
· Wi-Fi CERTIFIED 6
· WPA3 Enterprise Personal
· Wi-Fi Enhanced Open
· Wi-Fi Agile Multiband
· Passpoint
· Vantage
· WMM
Standards Compliance4 · EN 60950-1 Safety
· EN 60601-1-2 Medical
· EN 61000-4-2/3/5 Immunity
· EN 50121-1 Railway EMC
· EN 50121-4 Railway Immunity
· IEC 61373 Railway Shock & Vibration
· EN 62311 Human Safety/RF Exposure
· WEEE & RoHS
· ISTA 2A Transportation

2 Refer to Unleashed datasheets for SKU ordering information.
3 For complete list of WFA certifications please see Wi-Fi Alliance website.
4 For current certification status, please see price list.
