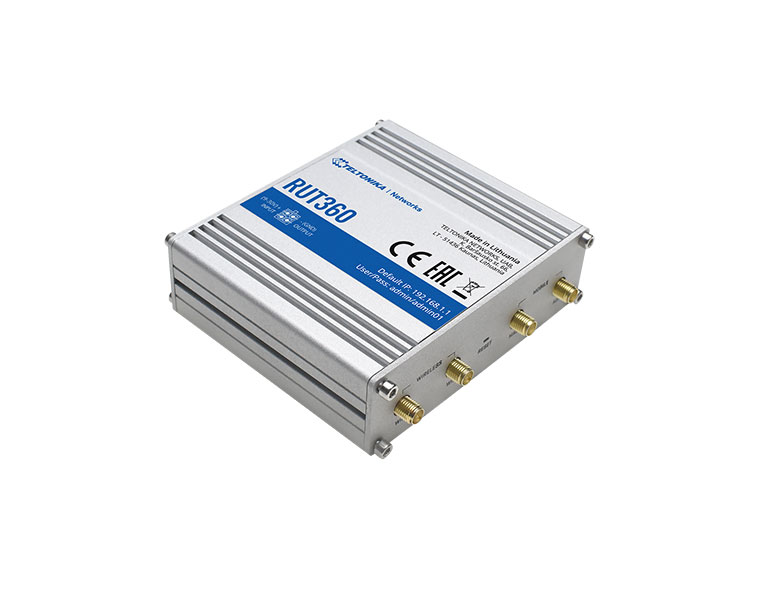

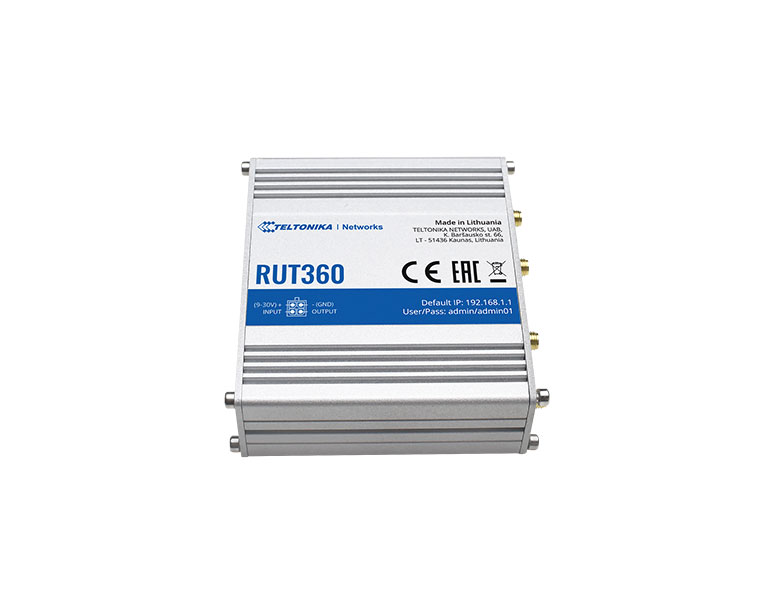

RUT360 is an updated version of Teltonika's all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.
RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.
Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 24 months |
Specifications | |
Hardware | |
Mobile | 4G (LTE) – Cat 6 DL; DC-HSDPA; HSUPA; WCDMA |
CPU | Qualcom MIPS 24Kc; 650 MHz |
Memory | 128 MB, DDR2 RAM |
Storage | 16 MB, SPI Flash (Optional up to 256 MB) |
Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
Power supply | 9 – 30 VDC, 4 pin DC connector |
Inputs/Outputs | 1 x Digital Input, 1 x Digital Open Collector Output on power connector |

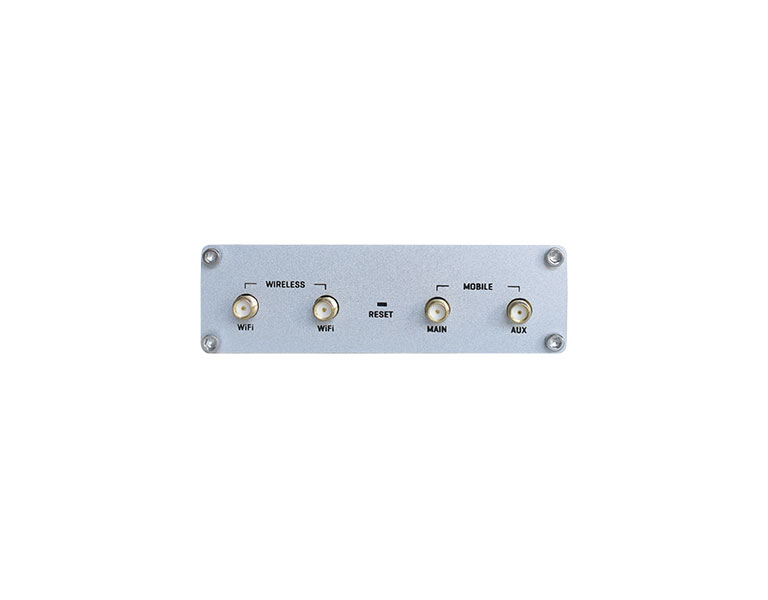

Connectors | 1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA |
SIM | 1 x external SIM holder |

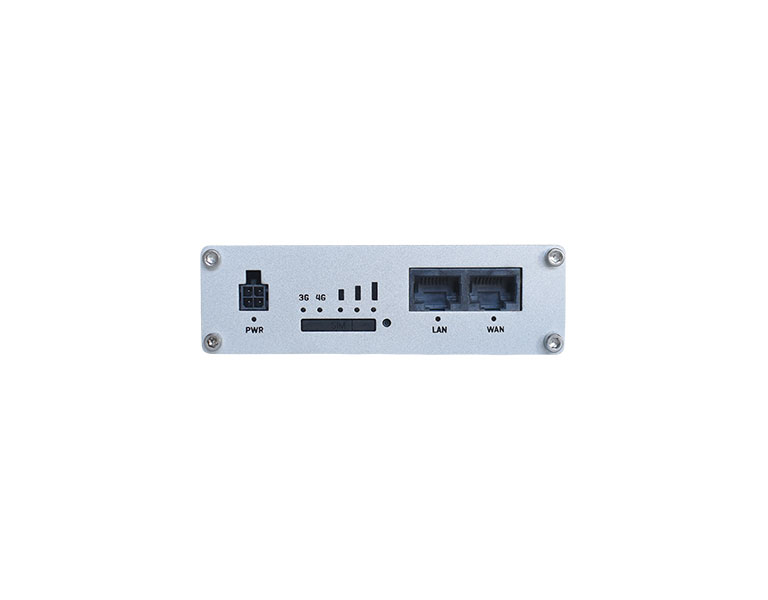

Status LEDs | 2 x connection type status, 3 x connection strength, 2 x LAN status, 1 x Power |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing and panels |
Dimensions(WxHxD) | 100 mm x 30 mm x 85 mm |
Weight | 247 g |
Software | |
Operating system | RutOS (OpenWrt based Linux OS) |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP |
Networking features | NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Unique networking features | VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover |
Connection monitoring | Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection |
Authetication | Pre-shared key, digital certificates, X.509 certificates |
Keep settings | Update FW without losing current configuration |
Monitoring & Management | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided |
Standard Package Contains | • Router RUT360 • 18 W PSU • 2 x LTE antennas (swivel, SMA male) • 2 x WiFi antennas (swivel, RP-SMA male) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • RMS Flyer • Packaging box |
