Ubiquiti AF60-HD airFiber 60 GHz Radio System with SFP+ support

Product Code:
AF60-HD
Manufacturer Ubiquiti
Sales price: 467,00 €(Includes 24% VAT)
Sales price without TAX:376,61 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Ubiquiti AF60-HD airFiber 60 GHz Radio System with SFP+ support

The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.

Features:
• Compact dimensions - 189 x 189 x 89 mm
• Low-interference 60 GHz spectrum - 57 up to 66 GHz
• Range up to 2 km
• Support channel bonding to achieve up to a 6 Gbps throughput rate (with 4320 MHz)
• (1) 1/10G SFP+ port, (1) Gigabit LAN port with passive PoE (48V DC)
• Terragraph-certified
• Integrated GPS
• Easy setup via bluetooth - UISP mobile app

Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following:
Regulation of Use of Radio Spectrum.
EU executive decision.
Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Dimensions Ø189 x 89 mm
Weight
Without Mount
With Mount

1.8 kg
2.95 kg
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount material Stainless steel (SUS304)

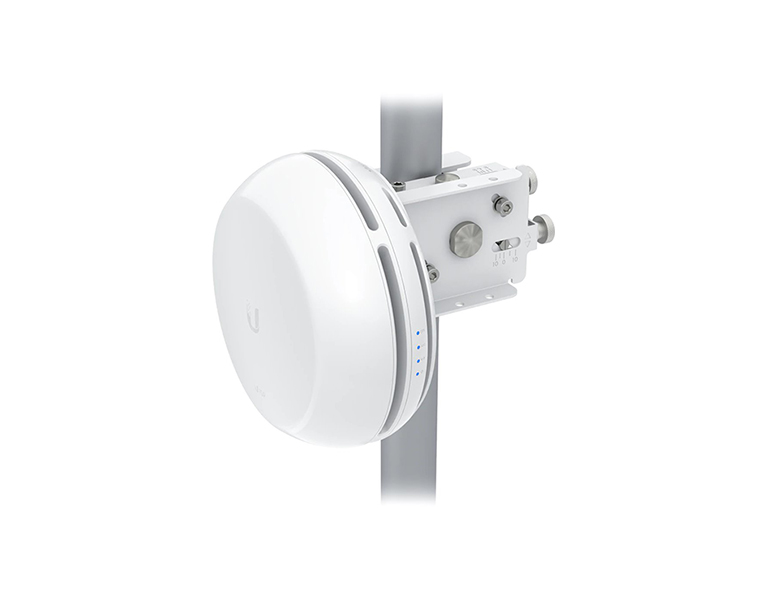

Mount 60G precision alignment pole mount(included)
Wide loading 64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-Core ARM® Cortex ® A72 at 1.6 GHz
Memory 2 GB DDR4

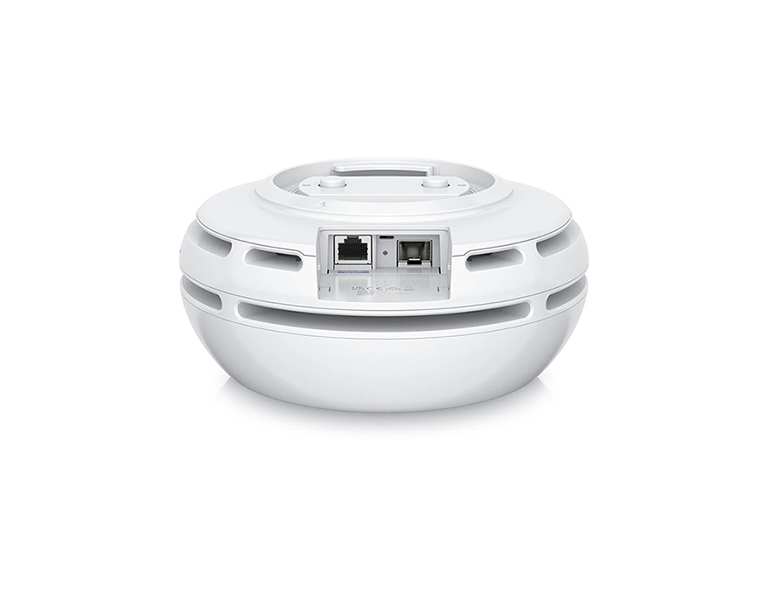

Networking interfaces (1) GbE RJ45 port
(1) 1/10G SFP+ port
Button Factory reset
RF connections Internal
Max.power consumption 29.31W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-)
(4, 5+; 7, 8-) or 2-Pairs (4, 5+; 7, 8-)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported voltage range 48VDC ± 10%
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph

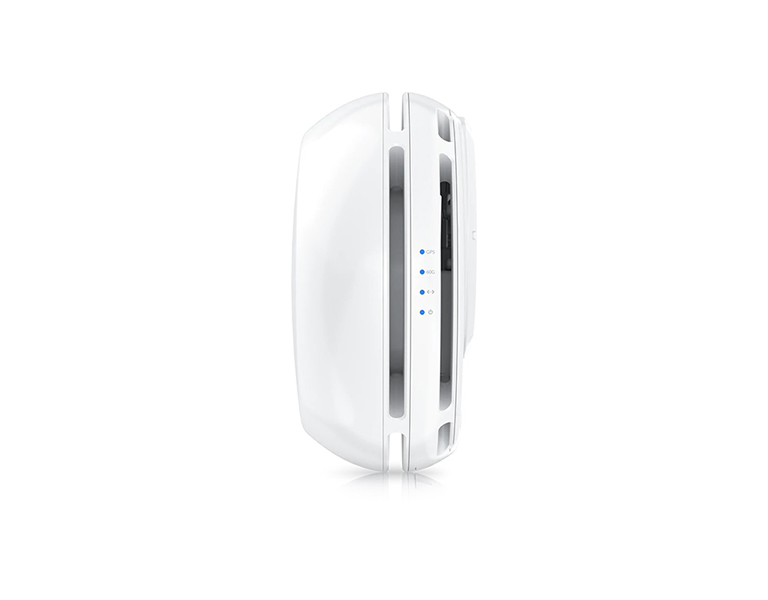

LEDs
Power Flashing white: bootup in progress
White: not connected to UISP console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving atleast(4) GPS satellite signals
60G Blue: active connection
System
Maximum throughput 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Maximum range 2 km
Encryption WPA2-PSK (AES)
Uplink/Downlink ratio 50/50
Software
OS airFiber
Modes PtP only
Services UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Utilities Beamform info, discovery utility, ping, trace route, speed test
Network Bridge mode
Wireless settings GPS sync*
*GPS is used to populate UI/UX elements.
Management interface Bluetooth management for easy setup over UISP app WEB UI
Minimum software requirements Any modern WEB browser/iOS or Android based smartphone
RF
Operating frequency* 57 to 66 GHz
*Depends onregulatory region.
GPS Yes
Channel bandwidth 2160 MHz/4320 MHz
(with channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*It depends on the channel bandwidth
Beamwidth HPOL: NaN (the antenna is only vertically polarized)
VPOL: 3°
Elevation: 3°
Electrical downtilt
