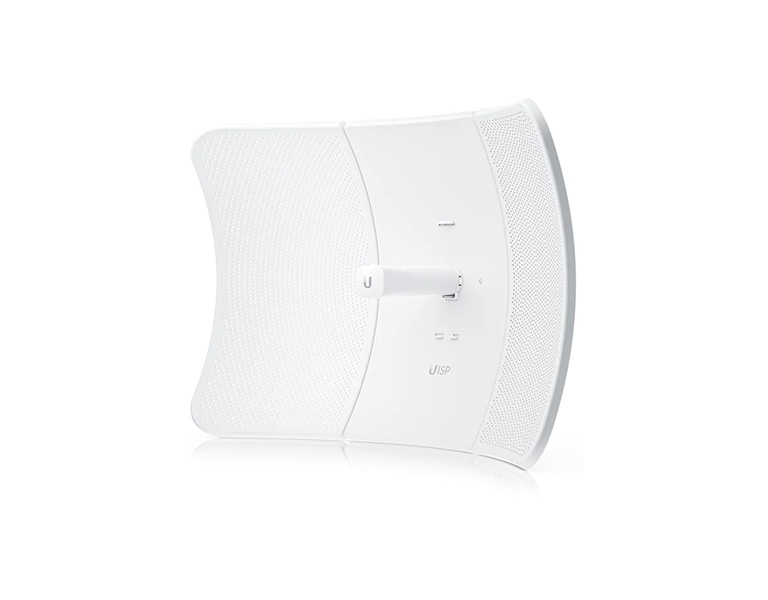

Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links. The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.

Features

• Proprietary airMAX ac chipset
• Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
• High-gain antenna with InnerFeed® technology
• Establishes high-speed, extremely-long-distance links
• Integrated GPS
• Link planning support via ISP Design Center
• Dedicated management radio for quick device setup via the UISP® Mobile app

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Mechanical
Dimensions	747 x 525 x 347 mm
Weight	3.2 kg
Enclosure materials	Aluminum alloy, UV stabilized polycarbonate Mount material UV stabilized polycarbonate Mount Integrated pole mount(included)
Pole compatibility	Ø35-60 mm
Wind loading	1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproong	IPX6
Hardware
Networking interfaces	(1) GbE RJ45 port
Button	Factory reset
LEDs	Power/ethernet
RF connections	Internal
Max. power consumption	7W
Power method Passive	PoE 2-pair (4, 5+; 7, 8-)
Power supply	24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range	22-26VDC
Operating temperature	-40 to 70° C
Operating humidity	5 to 95% non-condensing
Certications	FCC, IC, CE
System
Maximum throughput	450+ Mbps
Encryption	WPA2-PSK (AES)
Software
OS	airOS
Modes	PtMP, PtP
Services	SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities	airView, speed test, alignment, discovery, ping, traceroute, constellation
Management interface	Dedicated management radio for quick device setup via the UISP™ Mobile app WEB UI
Minimum software requirements	Modern Web browser or Android/iOS smartphone
RF
Operating frequency	5.15 to 5.85 GHz
Max. conducted TX power	25 dBm
Management radio	2400 - 2483.5 MHz
Channel bandwidth	10/20/30/40/50/60/80 MHz
Antenna Gain	29 dBi
Isolation	20 dB
Beamwidth	HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt	0°
