UniFi 6+ Access Point is a basic Dual Band WiFi 6 AP (2.4GHz and 5GHz) for smaller halls, warehouses or offices. The U6+ is capable of great throughputs. In 5 GHz band (2x2 MIMO) it is 2402 Mbps using 160 MHz bandwidth and in 2.4 GHz (2x2 MIMO) it is 574 Mbps , allowing it to support more than 300 concurrently connected clients. To connect to the network, the Access Point has Gigabit Ethernet with support for active (802.3at) as well as passive (44 to 57V) PoE.

Key Features
• Dual band WiFi 6, support 802.11a/b/g/n/ac/ax (WiFi 6)
• 5 GHz bandwidth up to 2402 Mbps (2x2 MIMO)
• 2.4 GHz bandwidth up to 574 Mbps (2x2 MIMO)
• Antenna gain - 2.4GHz (3 dBi) and 5GHz (5.4 dBi)
• WPA/WPA2/WPA3 encryption
• Gigabit LAN port
• Power supply via 802.3af or passive 44 to 57V PoE, consumption 9W
• Supported by UniFi Controller since version 7.3.76

Central control of units
To manage the device, you need to download the original software called UniFi Network Controller from the official website, thanks to which the entire network can be controlled. The indisputable advantage of UniFi Controller is that it is completely free without any restrictions! This central management will allow you to upload maps and set basic parameters as well as advanced functions such as SSID, guest account, start page, traffic statistics and the list and status of associated clients always easily and quickly.

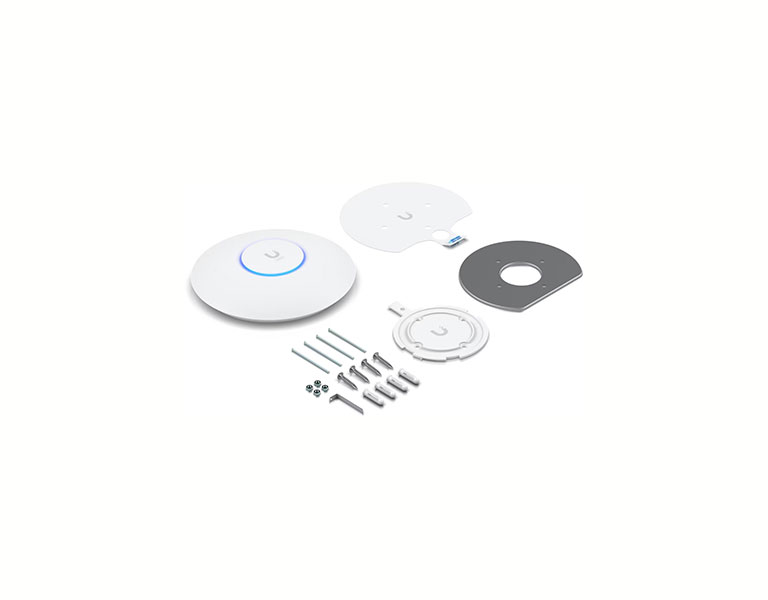

Package contents
• Device
• Ceiling/wall mounting kit (plastic and metal round part)
• Set of screws and dowels

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Mechanical

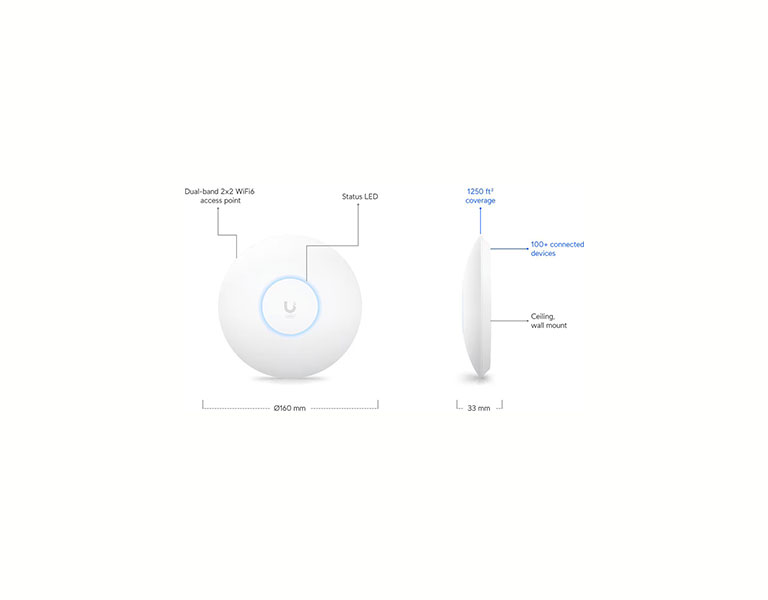

Dimensions	Ø160 x 33 mm
Weight	Without mount: 338 g With mount: 413 g
Enclosure Characteristics	Top cover: polycarbonate Bottom cover: aluminum
Mount materials	ABS, SGCC steel
Hardware

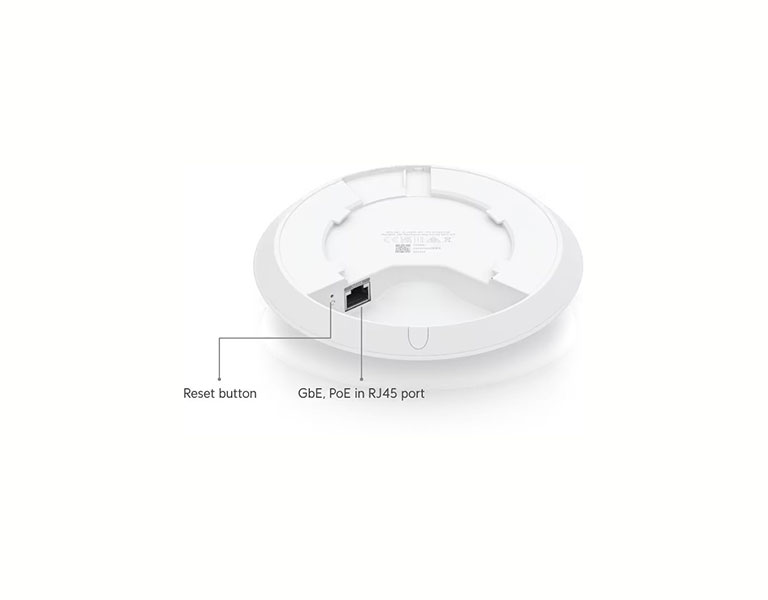

Networking interface	(1) GbE RJ45 port
Managementinterface	Ethernet
Power method	PoE
Supported voltage range	44–57V DC
Max. power consumption	9W
Max. TX power	2.4 GHz: 23 dBm 5 GHz: 23 dBm
MIMO	2.4 GHz: 2 x 2 5 GHz: 2 x 2
Throughput rate	2.4 GHz: 573.5 Mbps 5 GHz: 2402 Mbps
Antenna gain	2.4 GHz: 3 dBi 5 GHz: 5.4 dBi
LED	White/blue
Button	Factory reset
Mounting	Wall/ceiling (included)
Operating temperature	-30 to 60° C
Operating humidity	5 to 95% noncondensing
Certications	CE, FCC, IC
Software
Wi-Fi Standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
Zero wait DFS	Not supported
Concurrent Clients	300+
Management application	UniFi Network: Version 7.3.76 and later
