An incredibly compact Access point from the UniFi family for indoor and, thanks to IPx6 protection, outdoor use, this is the new Ubiquiti Swiss Army Knife Ultra. The UK-Ultra is equipped with 1x Gbit Ethernet, which in addition to data transmission is also used for PoE power supply with 44-57V. It supports 8021.11a/b/g/n/ac wireless standards in a 2x2 MIMO configuration for both frequency bands and can handle 200+ connected clients. With a pair of RSMA connectors, it is possible to connect an omnidirectional or sector external antenna to increase the transmitter's range.

The access point offers a wide range of wall, ceiling or mast mounting options, with mounting accessories included.

Central unit control
To manage the device, you need to download the original software called UniFi Network Controller from the official website, which allows you to manage the entire network. The undeniable advantage of UniFi Controller is that it is completely free without any restrictions! This central management will allow you to upload maps and set basic parameters and advanced features such as SSID, guest account, homepage, traffic statistics as well as the list and status of associated clients quickly and easily.

U6-LR

Benefits of UniFi solutions:
• Fast Roaming - failover between APs
• Wireless uplink (handy where a data cable can't reach)
• Up to 8 SSIDs
• Detailed traffic statistics
• Guest network
• Load balance - maintain a steady load / switch clients
• Rate limiting for each SSID

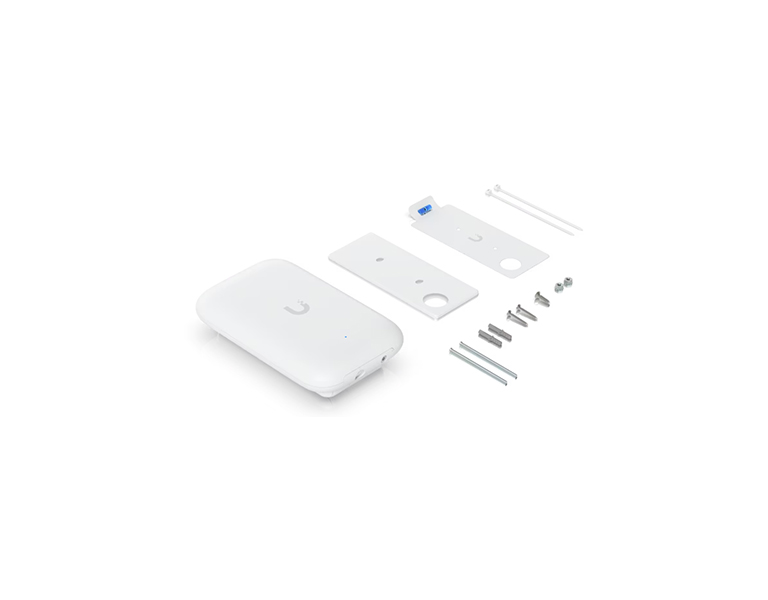

Package contents:
• Equipment
• Wall, ceiling and pipe brackets
• Drilling template
• Tensioning tape
• Mounting kit

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	137 x 84 x 34 mm
Weight	173 g
Enclosure material	UV-stabilized polycarbonate
Mount material	Polycarbonate, SGCC steel, plastic
Pole mount diameter	1-2" on pipe outer diameter
Wind survivability	33.2 N at 200 km/h
Weatherproofing	IPX6
Hardware

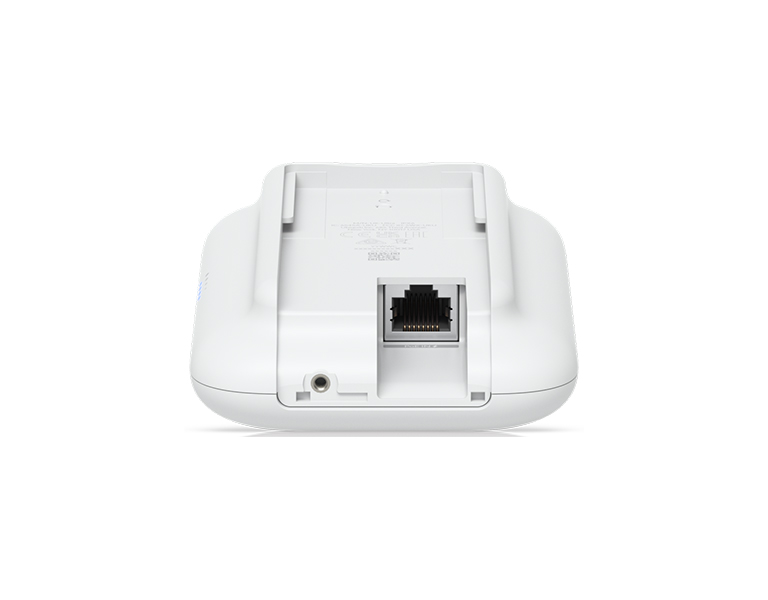

Networking interface	(1) GbE RJ45 port
Management interface	Ethernet
Power method	PoE
Power supply	UniFi PoE Switch
Supported voltage range	44—57V DC
Max. power consumption	8W
Max. TX power
2.4 GHz	20 dBm
5 GHz	20 dBm
MIMO
2.4 GHz	2 x 2
5 GHz	2 x 2
Throughput rate
2.4 GHz	300 Mbps
5 GHz	866.7 Mbps
Antenna gain
2.4 GHz	4.7 dBi
5 GHz	6 dBi
Antenna	(1) Internal antenna (2) RP-SMA connectors for optional external antennas
LEDs	(1) Power: white/blue (4) Mesh signal: blue
Button	Factory reset
Mounting	Wall, ceiling, pole (Included)
Ambient operating temperature	-40 to 60° C
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	200+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Application Requirements
UniFi Network	Web: Version 8.0.7 and later iOS™: Version 10.11.1 and later Android™: Version 10.10.1 and later
