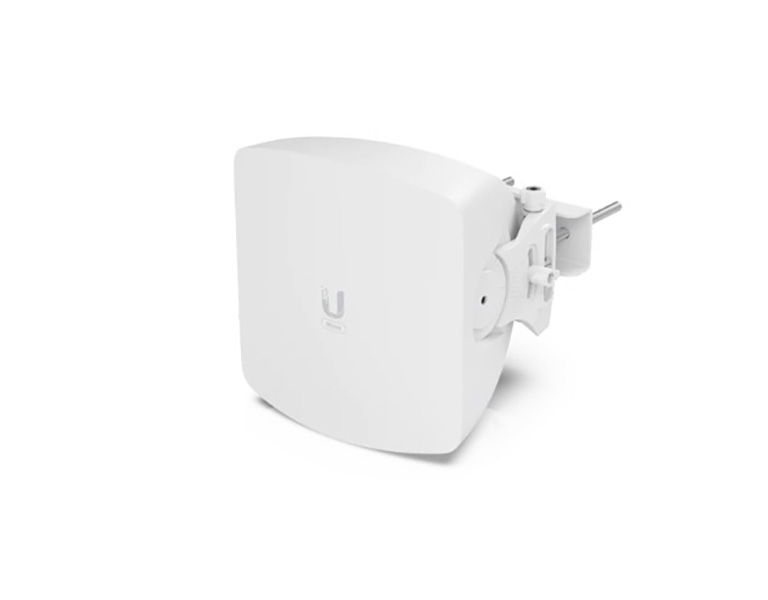

Ubiquiti Wave-AP UISP Wave Access Point
Product Code:
Wave-AP
Manufacturer Ubiquiti
Sales price:
690,00 €(Includes 24% VAT)
Sales price without TAX:556,45 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
Ubiquiti Wave-AP UISP Wave Access Point
Features:
• 5 GHz backup radio
• Supported stations and distances:
– Wave Long-Range: up to 8 km
– Wave Nano: up to 5 km
• WAN Ports: (1) 10G SFP+, (1) 2.5GbE
• Integrated GPS antenna
• Link planning support via the ISP Design Center
60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
| Caution! According to current Greek Legislation, the use of devices that transmit in the frequency band 57.000 – 71.000 MHz, must be in accordance with the following: Regulation of Use of Radio Spectrum. EU executive decision. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Mechanical | |
| Dimensions | 212 x 205 x 187 mm |
| Weight | 2.3 kg |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Pole mount diameter | 25 to 76 mm on pipe outer diameter |
| Wind loading | 98 N at 200 km/h |
| Weatherproong | IPX6 |
| Hardware | |
| Processor | Quad ARM® Cortex ® -A53 cores at 1.4GHz |
| Memory | DDR3L 512MB |
| Networking interface | (1) 2.5GbE RJ45 port(100/1000/2500)* (1) 10G SFP+ port(1/10) *ActiveonlywhenSFP+portis down |
| Max. power consumption | 24W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Operating temperature | -40 to 60° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE |
| Software | |
| OS | airOS ® |
| Operating mode | PtMP access point |
| Ubiquiti specic features | Wave technology |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Software management | Bluetooth managementfor easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported clients count | 15 |
| Range | Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends onregulatory region |
| GPS | Yes |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends onregulatory region |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 30° Elevation: 3 dB 3°, 6 dB 4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* | US/CA U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide 5150 - 5875 MHz *Depends onregulatory region |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½) QPSK (½), QPSK (¾) 16QAM (½), 16QAM (¾) 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6) 256QAM (¾), 256QAM (5⁄6) 1024QAM (¾), 1024QAM (5⁄6) |
| Antenna gain | 12 dBi |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: mware upgrade in progress |
| Ethernet | Flashing white: Ethernettrafc detected Flashing blue: SFP+ traffic detected |
| GPS | Blue: receiving atleast(4) GPS satellite signal |
