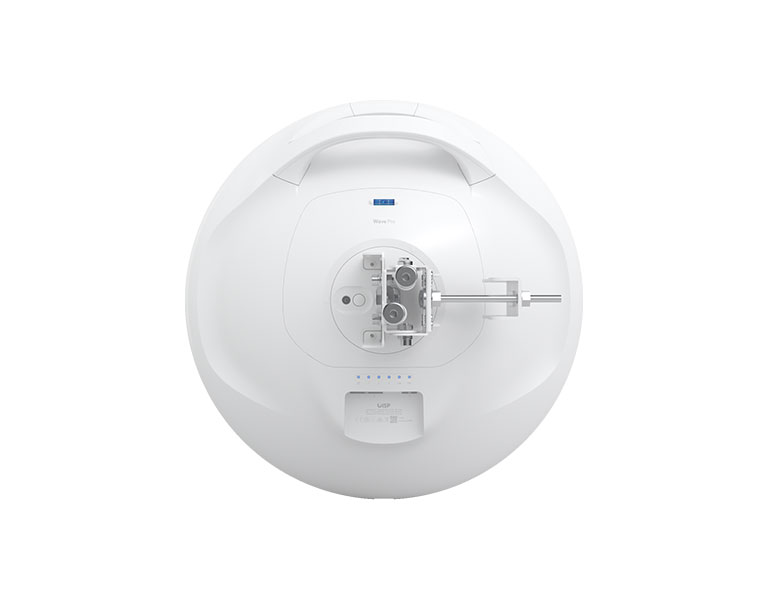

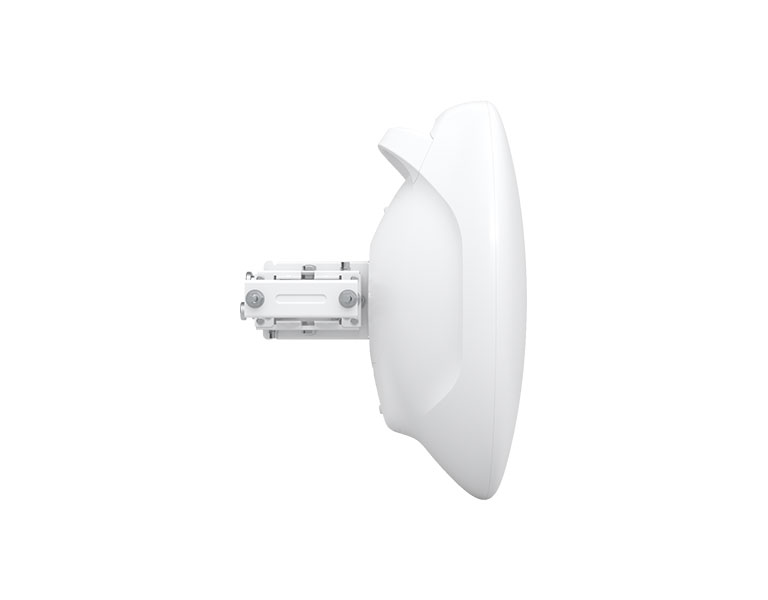

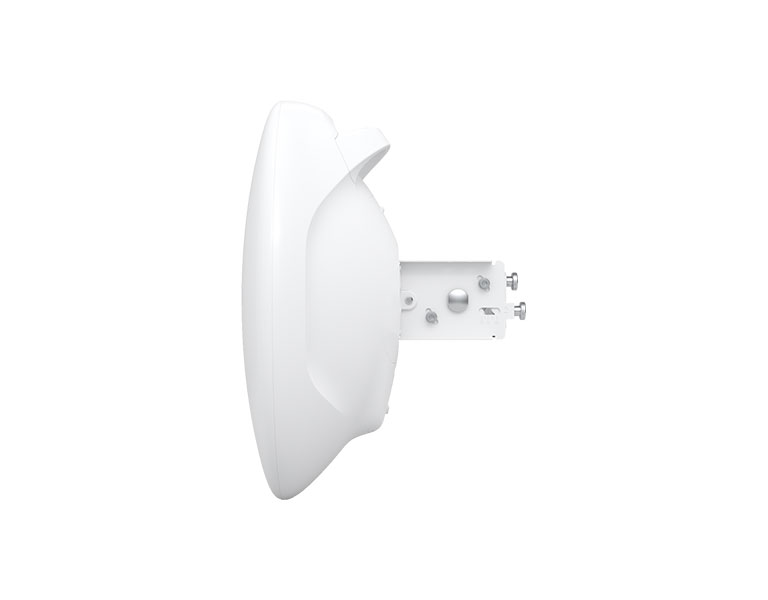

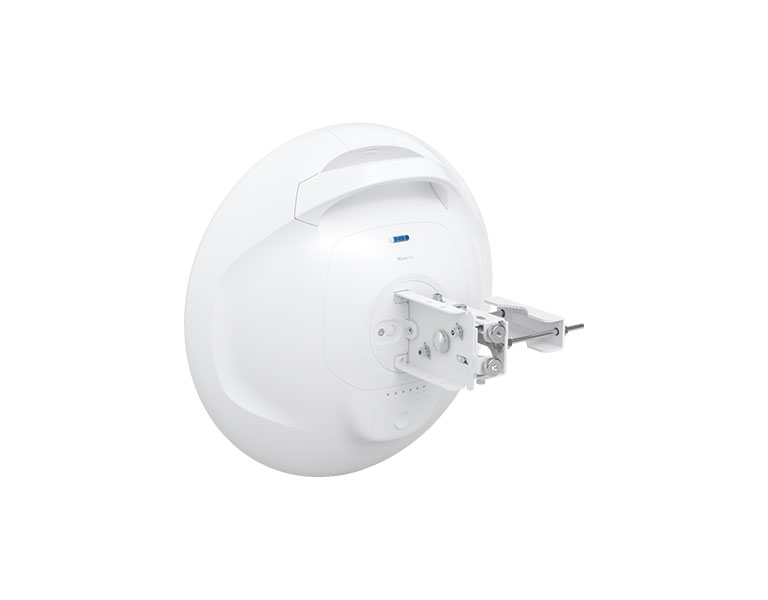

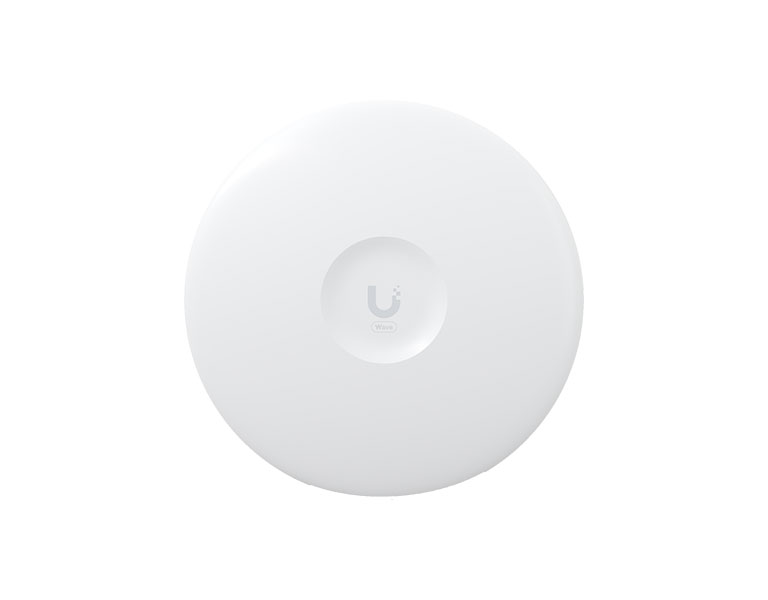

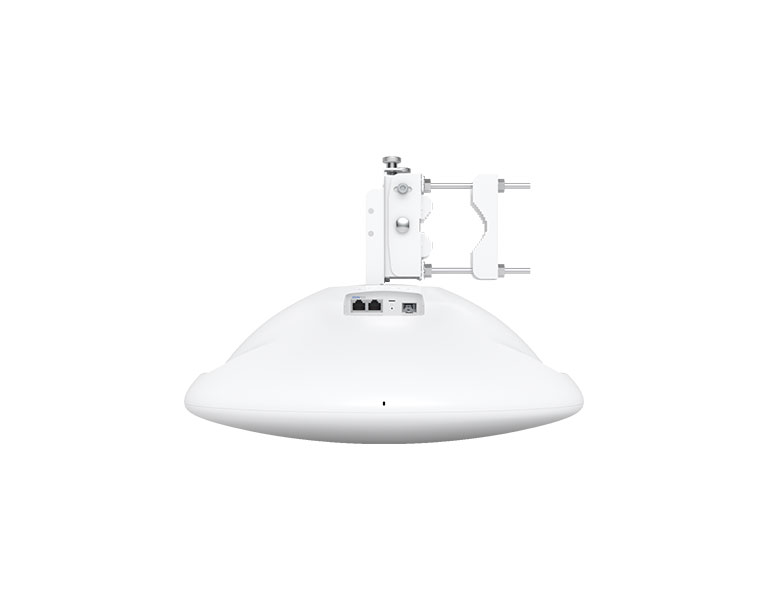

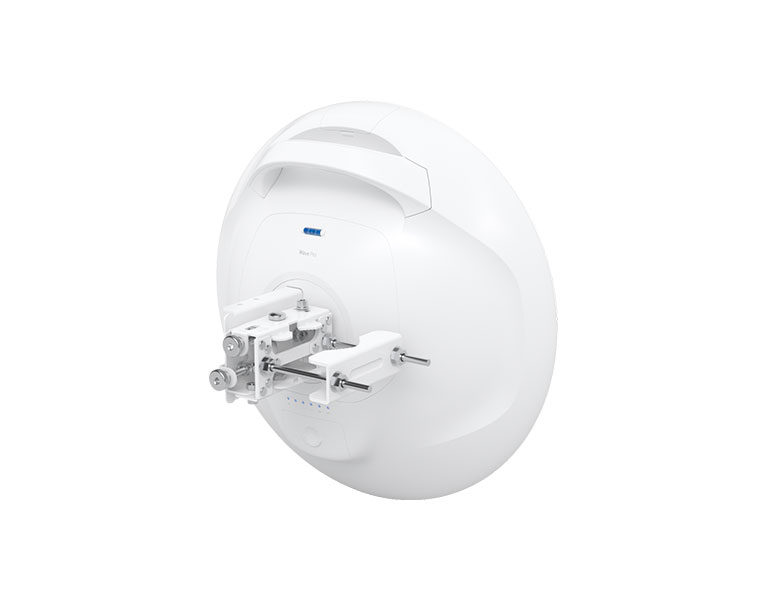

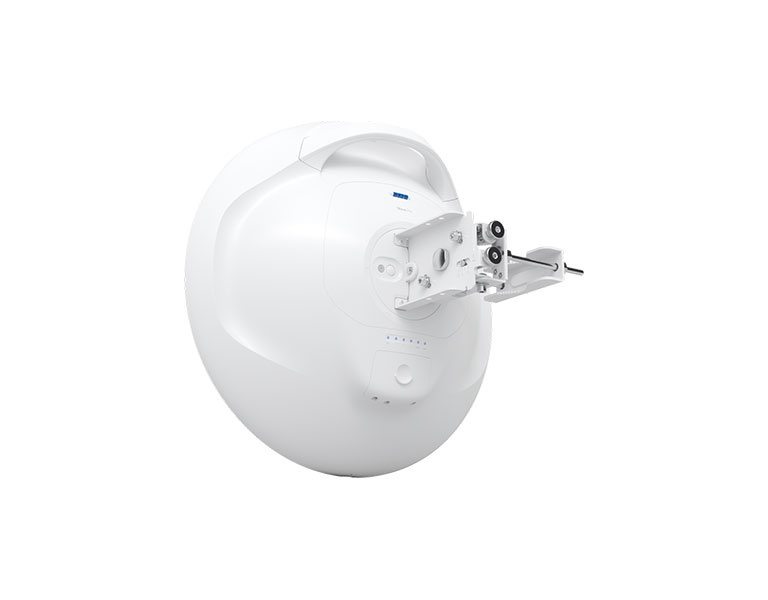

Ubiquiti Wave Professional is a device that can operate as a point-to-point (PtP) bridge. It can transmit up to 15 km in PtP mode, and as a PtMP Wave Access Point up to 8 km, or as a Wave AP Micro only 6 km. It includes 2 LAN ports with speeds up to 2.5 Gbps and 2 LAN/WAN ports also with speeds up to 2.5 Gbps. The device is protected against water and dust with an IPX6 rating and can withstand wind speeds up to 200 km/h. High-quality security is ensured by WPA2 AES encryption.
Key Features:
• Transmission range up to 8 km in PtMP Wave Access Point mode and up to 6 km in Wave AP Micro mode.
• Includes 2 LAN ports with speeds up to 2.5 Gbps and 2 LAN/WAN ports also with speeds up to 2.5 Gbps.
• Water and dust protection with IPX6 rating.
• Wind resistance up to 200 km/h.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
Warranties - Returns: | |
Money Return: | Repair - Replacement: |
20 days | 12 months |
Mechanical | |
Dimensions | Ø424.4 x 166.2 mm |
Weight | Without mount: 2.8 kg With mount: 4 kg |
Enclosure materials | Aluminum alloy, UV stabilized plastic |
Mount material | Stainless steel |
Pole mount diameter | 25 to 76.2 mm on pipe outer diameter |
Wind loading | 369 N at 200 km/h |
Weatherproong | IPX6 |
Hardware | |
Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
Memory | DDR3L 512 MB |
Networking interface | (2) 2.5 GbE RJ45 ports (1) 10G SFP+ port |
Max. power consumption | 26W |
Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (included) |
Supported voltage range | 44–54V DC 22–27V DC |
GPS | Yes |
Button | Factory reset |
LEDs | Power, (2) Ethernet, SFP+ , GPS, link |
Operating temperature | -40 to 60° C |
Operating humidity | 5 to 95% noncondensing |
Certications | FCC, IC, CE |
Software | |
Operating mode | PtP, PtMP station |
Ubiquiti specic features | Integrated 60 GHz radio, discovery protocol, Wave technology |
Services | UISP, ping watchdog, NTP client, SNMP |
Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
Network | Bridge/Router* mode *Router is available in PtMP station mode only. |
Application requirements | UISP: Version 2.3.0 and later |
System | |
Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
Maximum range | PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro) |
Encryption | WPA2-PSK (AES) |
RF | |
Operating frequency* | 57 to 71 GHz *Depends onregulatory region |
Polarization | Vertically linear |
Channel bandwidth | 2160, 1080 MHz |
Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
Modulation | 16QAM, QPSK |
Antenna gain | 46 dBi |
Beamwidth | Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3° |
Back-Up RF | |
WiFi standard | 802.11ax (WiFi 6) |
Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
Channel bandwidth | 20, 40, 80 MHz |
Modulation | BPSK (½) QPSK (½), QPSK (¾) 16QAM (½), 16QAM (¾) 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6) 256QAM (¾), 256QAM (5⁄6) 1024QAM (¾), 1024QAM (5⁄6) |
Max. conducted TX power | 27 dBm |
Antenna gain | 22 dBi |
Polarization | Dual-linear |
Beamwidth | Azimuth: 3 dB 8° Elevation: 3 dB 8° |
Cross-pol isolation | 20 dB |
LEDs | |
Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
Ethernet | (2) Flashing blue: Ethernet traffic detected |
SFP+ | (1) Flashing blue: SFP+ traffic detected |
GPS | Blue: Receiving at least (4) GPS satellite signal |
Links | White: 5GHz link Blue: 60GHz link |
