Not Just a Wi-Fi Router, It's a Wi-Fi System
AmpliFi is more than a common home router: it’s the ultimate Wi-Fi system. With turbocharged 802.11AC Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring Wi-Fi coverage to any home.

Your Wi-Fi Router is No Longer Something to Hide
Designed from the outside in, AmpliFi is meant to be a showcase piece for the modern home.

Perfect User Experience

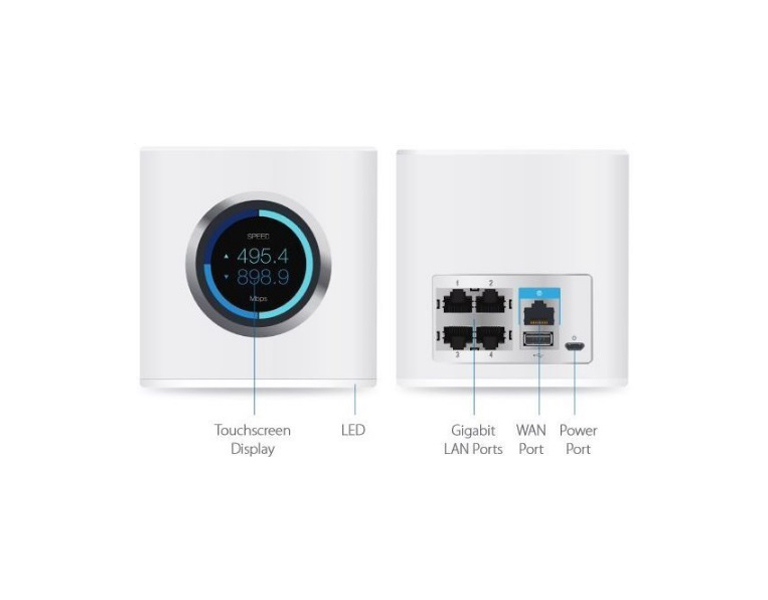

One intuitive app allows instant setup, powerful reporting metrics, and easy guest access. Out of the box, the AmpliFi Router and Mesh Points are pre-paired to work seamlessly as a Wi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.

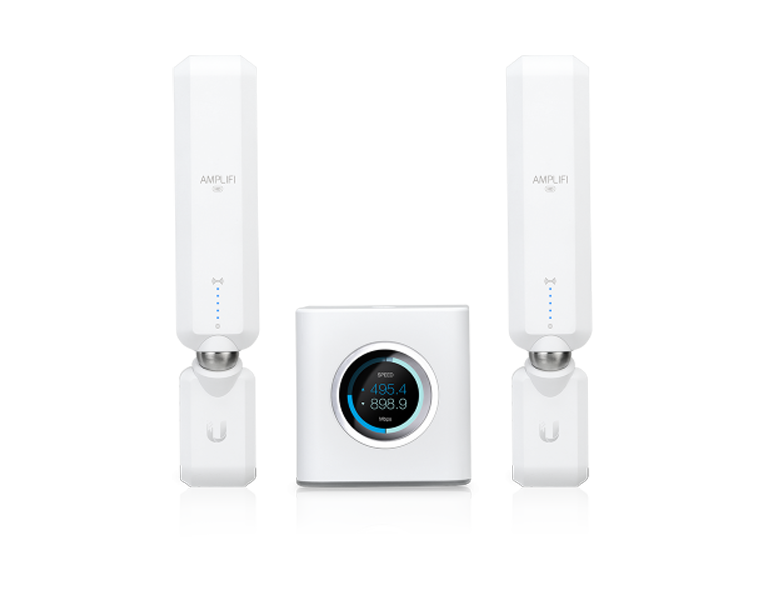

System Overview

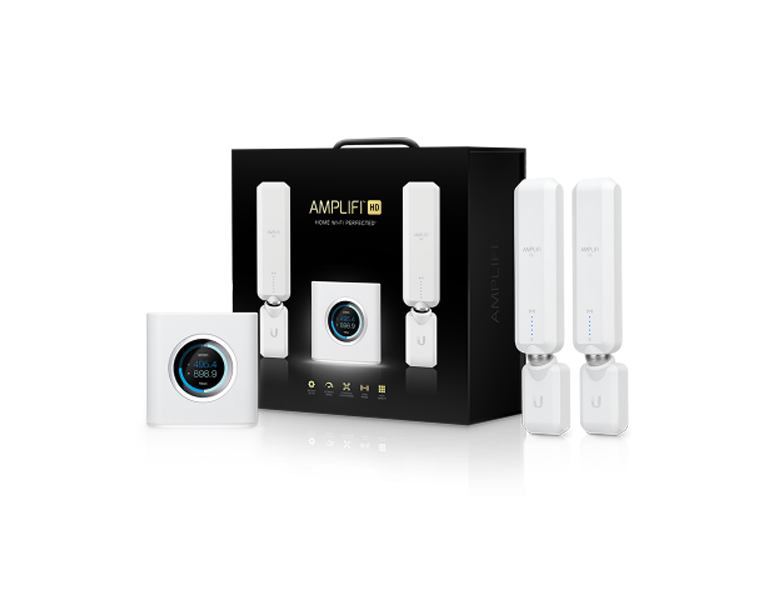

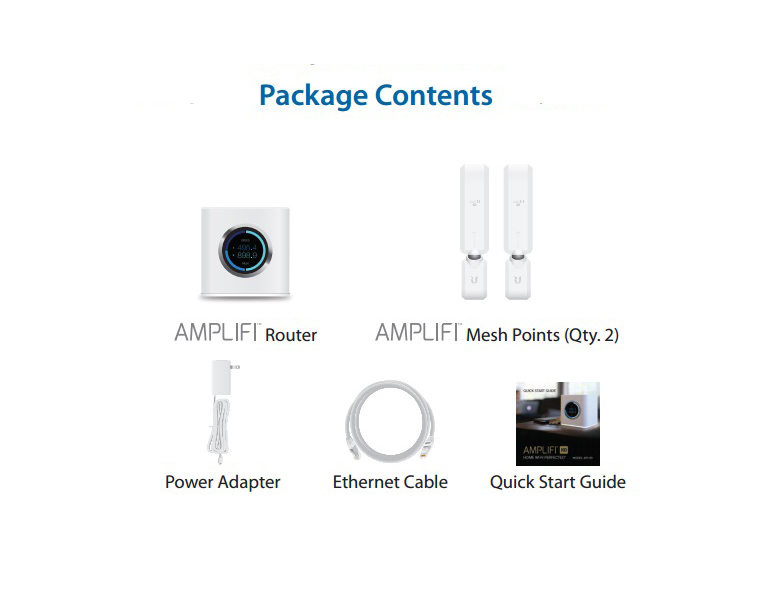

The AmpliFi Home Wi-Fi System includes a Router and two Mesh Points for Wi-Fi coverage throughout your home. The AmpliFi Wi-Fi System uses mesh technology to provide powerful wireless performance in an innovative and simple design. The Router features an intuitive touchscreen display and the Mesh Points display wireless signal performance.

Wireless, Boosted
The AmpliFi System includes two Mesh Points, and you can add more if needed. The Mesh Points fit discreetly in any household, wherever dead spots need coverage. Signal strength LEDs are integrated into the design to ensure the system is positioned for optimal performance.

Guest Access Simplified
AmpliFi utilizes an open time window concept to allow instant guest access without the security compromise and inconvenience of password sharing.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Max. TX Power	26 dBm
Radios	6
MIMO Chains	18
Speed	5.25 Gbps
Range	20,000 sq. ft
Networking Interface	Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Max. Power Consumption	11W
ESD/EMP Protection	± 24kV Air/Contact
Buttons	Reset
Antennas	(3) Dual-Band Antennas
Display	1.6" (40.6 mm) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards	802.11ac
Power Save	Supported
Wireless Security	WPA2-PSK AES/TKIP
Operating Temperature	14 to 131° F (-10 to 55° C)
Operating Humidity	5 to 95% Noncondensing
Certifications	FCC / CE / IC
Supported Data Rates (Mbps)
Standards	Data Rates
802.11ac	13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Model Comparison Chart
Model	AFi	AFi-LR	AFi-HD
Range	10,000 sq. ft	20,000 sq. ft	20,000 sq. ft
Speed	2.35 Gbps	2.35 Gbps	5.25 Gbps
Max. TX Power	24 dBm	26 dBm	26 dBm
Radios	4	4	6
MIMO Chains	10	10	18
