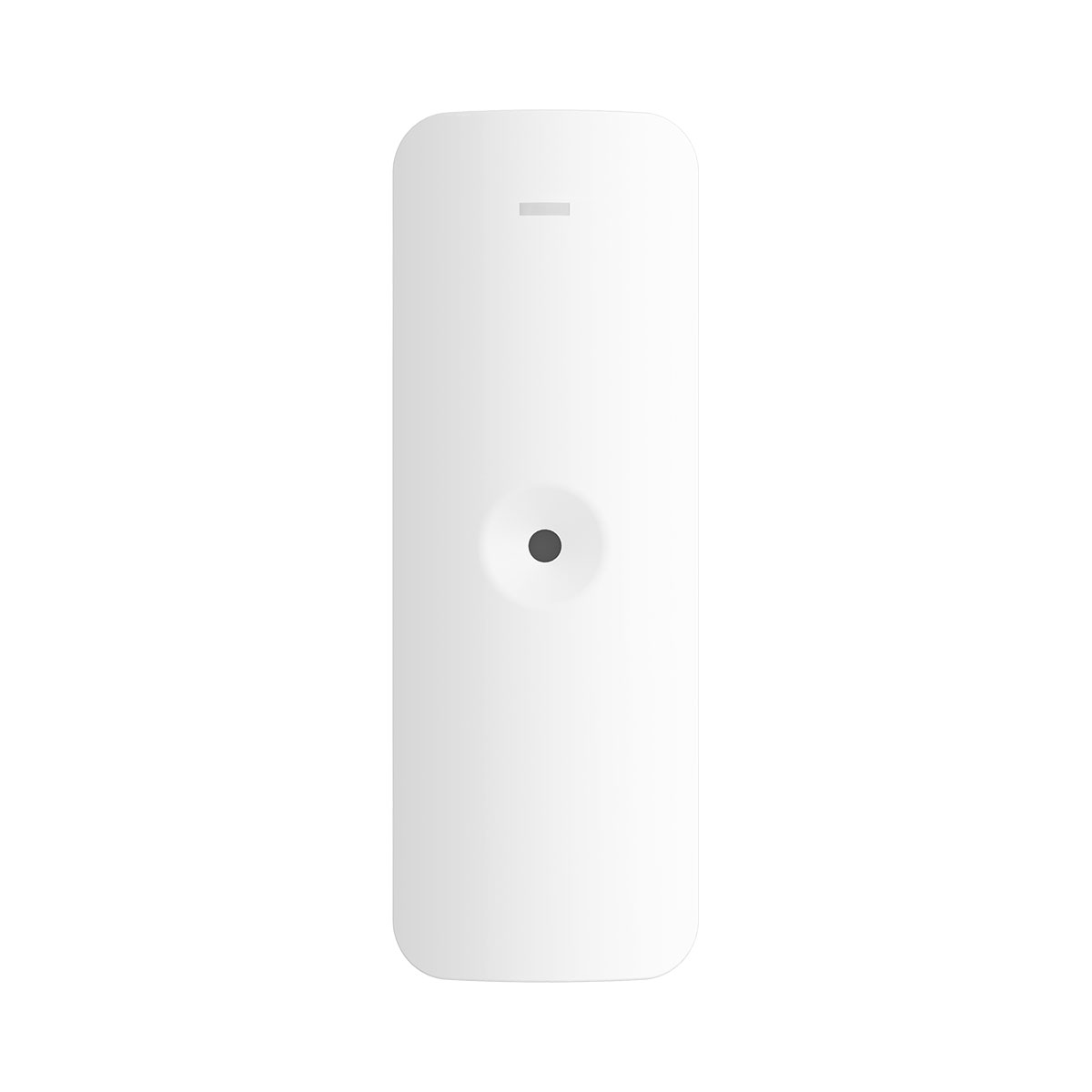

Wired Glass Break Detector
• High quality Omni-directional microphone sensor
• Up to 8m/120° detection coverage
• Selectable EOL resistors（Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8/）
• 9-16 VDC wide voltage adaptation with polarity reverse connection protection
Χαρακτηριστικά
| Specification | |
| Detection performance | |
| Detection Method | Acoustic Sensor |
| Detection Range | 8m |
| Detection Angle | 120° |
| Glass Break Sensitivity | Potentiometer Adjustment |
| Glass Type | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass Thickness | 2.4mm to 6.4mm |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12V |
| Power Consumption | Maximum current：25mA @12VDC Quiescent current：25mA @12VDC |
| General | |
| Operation Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 38.8 mm × 107 mm × 22.5 mm |
| Weight | 49.5g |
| Mounting Method | Wall;Ceiling |
| Application Scenario | Indoor |
