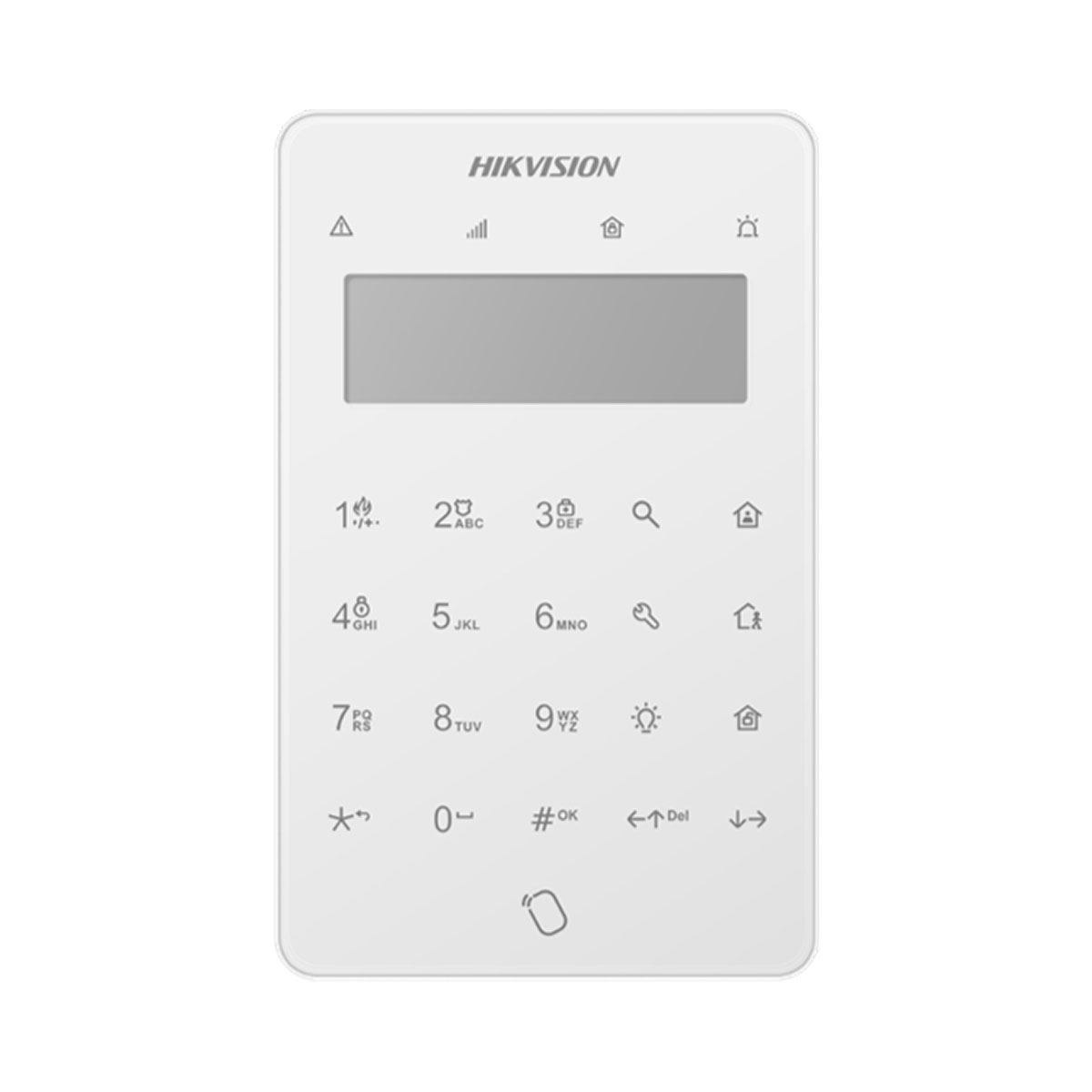

Hikvision DS-PK501LTM-HWE, AX Ηybrid Pro Wired LCD Keypad
Κωδικός προϊόντος:
DS-PK501LTM-HWE
Άμεσα διαθέσιμο
Hikvision DS-PK501LTM-HWE, AX Ηybrid Pro Wired LCD Keypad
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Wired LCD Keypad
• Mono LCD screen display
• Modern touch button design
• Supports Fire/Panic/Medical function keys
• Includes 2 inputs and 1 relay output on-board
• Supports tag reader
• Supports keyfob control (868MHz)
• Detachable terminals for easy wiring
• Sliding back cover for simplified installation
Χαρακτηριστικά
| Technical specifications | |
| Inputs(Zones) | |
| Max. Zones | 2 |
| On-board zones | 2 |
| Outputs | |
| Max. outputs | 1 |
| On-board relay outputs | 1 |
| Peripherals | |
| Wireless keyfob | 64 |
| User interface | |
| Display | Monochrome LCD |
| Indication | 1 buzzer and 4 status LED indicators including Fault(orange), Signal(green), Arm(blue)/Disarm(green), Alarm(red) |
| Key button | Touch Sensing Buttons, including 0~9, *, # and functional keys (e.g. Query, Engineering, Output, Away Arm, Stay Arm, Disarm, Left, Right) |
| Authentication | |
| Tag | Support M1 Card |
| Keyfob | Compatible with DS-PKF1-WE / DS-PKF1-WE(B) |
| PIN | 4~6 digits |
| Bus interconnection | |
| Bus-extender | No |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²) |
| Wireless interconnection | |
| Frequency | 868.0-868.6 MHz |
| Wireless technology | Tri-X, 2-way encrypted wireless, radio frequency hopping |
| Transmission modulation | 2GFSK |
| Transmission range | 900 m (open area) |
| Power supply - general | |
| Input voltage | 12 VDC nominal (9-16 VDC), powered by bus |
| Quiescent current | 40 mA @12VDC |
| Max. current | 200 mA @12VDC |
| Relay output | |
| Relay output | 1A 30VDC |
| Environmental | |
| Operating temperature | -10°C to 50°C , indoor use only |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 10% ~ 90% non-condensing |
| Physical | |
| Dimension (W × H × D) | 175 × 110 × 27 mm |
| Weight | 301 g |
| Tamper-proof | Front and Rear |
| Installation method | Wall mount |
| Compliance | |
| Electrical conformity | CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
| Other | |
| Ancillary Control Equipment (ACE) | Type B |
