• Sound Decibel: 105dB at 30cm
• IP54 protective level
• Sound and LED flash indication separately
• Easy installation with new designed structure
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

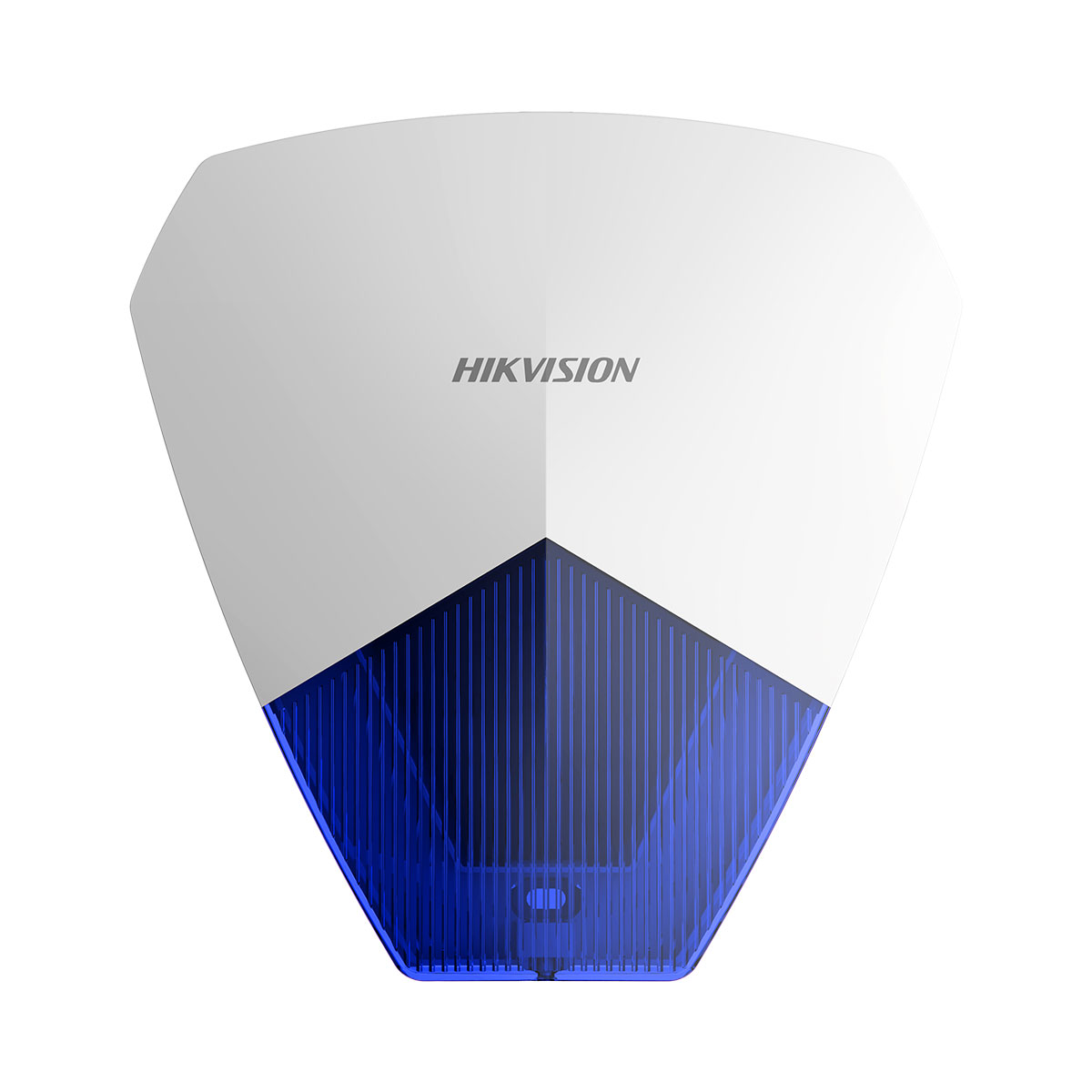

The wired sounder is used to connect to wired control panel, by using 12v outpout voltage from panel, the sounder can alarm up to 105dB sound. The sounder can be used both internal or external, the LED fash and the sounder indication can be configured separately.
Χαρακτηριστικά
| Electrical Characteristics | |
| Power supply | 8 to 16 VDC, Max. 0.22A |
| Operating humidity | 10% to 90% |
| Operating temperature | -20℃ to ＋60℃ |
| Power consumption | Quiescent current: 0.96W |
| General | |
| IP rate | IP54 |
| Dimension (W x H x D) | 140 x 134 x 33mm |
| Shell material | PC+ABS |
| Color | Blue |
| Weight | 185 g |
| Audio | |
| Sound pressure | 105 dB/30cm |
