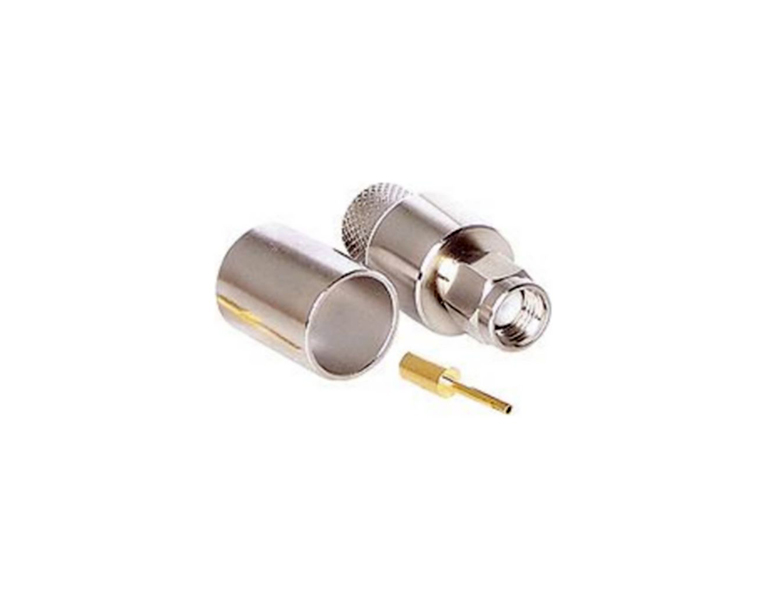

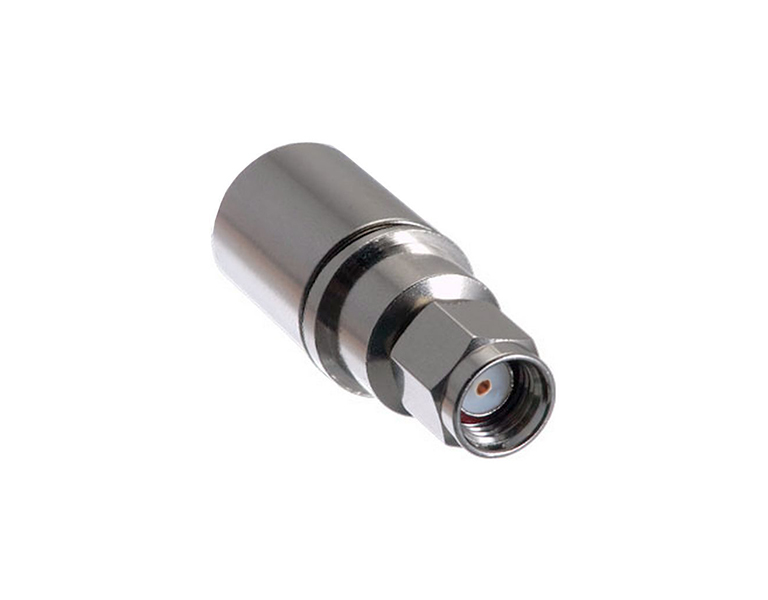

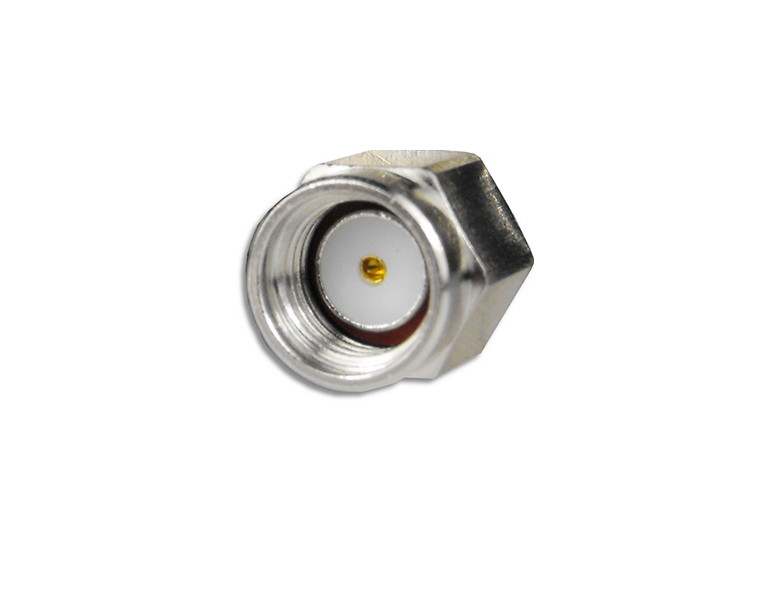

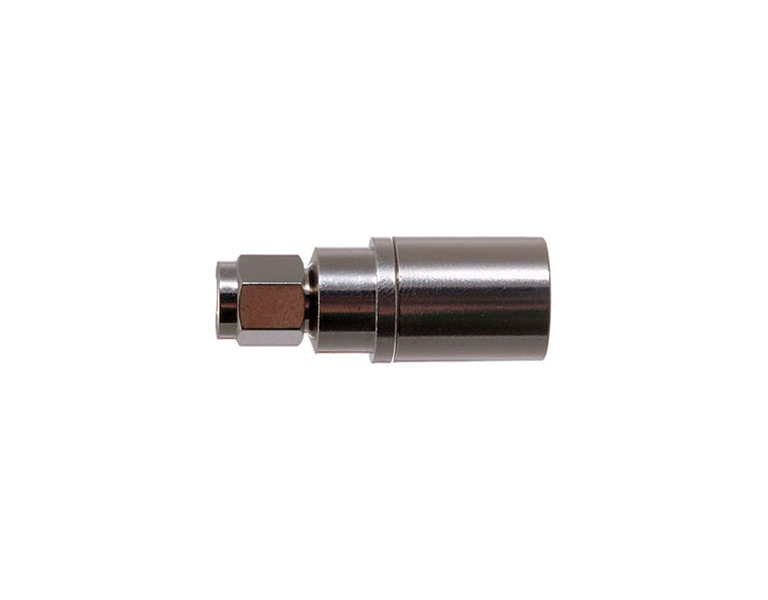

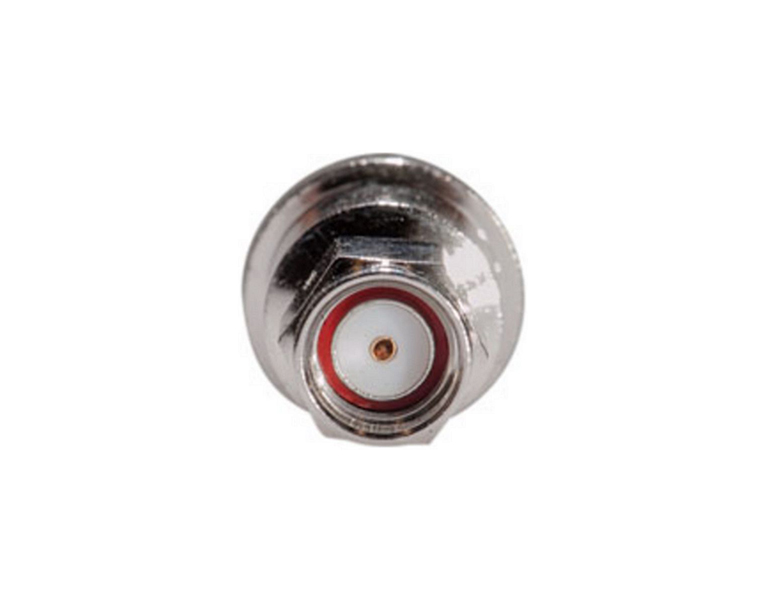

E-zy EZ-RPSMAP400 RP-SMA Plug Crimp connector for 400, RG-8 series cable

Product Code:
EZ-RPSMAP400
Manufacturer E-zy
Sales price: 3,40 €(Includes 24% VAT)
Sales price without TAX:2,74 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
E-zy EZ-RPSMAP400 RP-SMA Plug Crimp connector for 400, RG-8 series cable

RP-SMA Plug Crimp connector for 400, RG-8 series cable.
RP-SMA Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The RP-SMA series connector is impedance matched to 50 ohm cables.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months





Specifications
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Body (Material/Finish) Brass/Nickel
Center Pin (Material/Finish) Bronze/Gold
Crimp Tube (Material/Finish) Annealed Copper/Nickel
Dielectric Teflon
