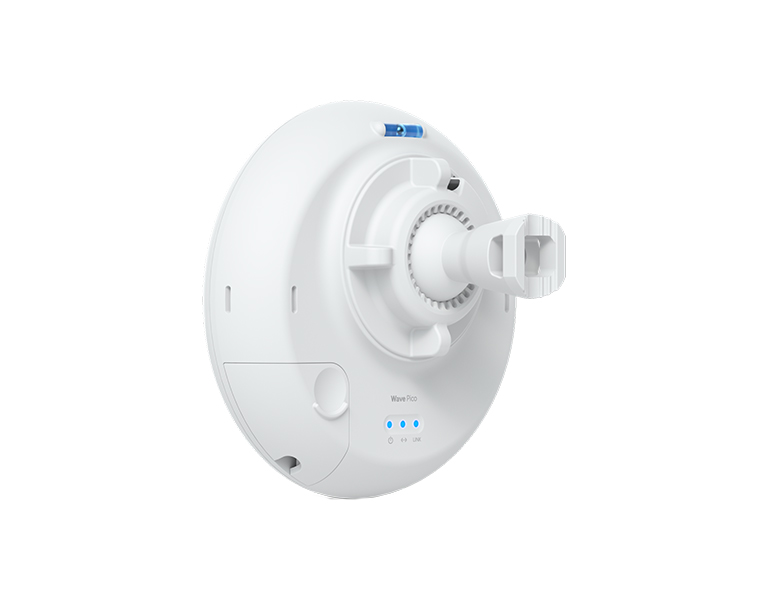

Ubiquiti Wave-Pico Light Weight, Compact 60 GHZ PTMP Station, Wave technology

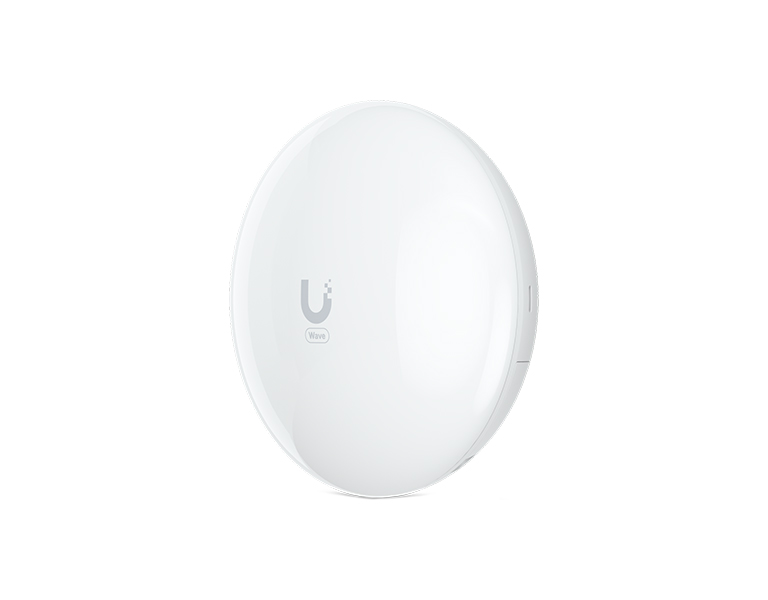

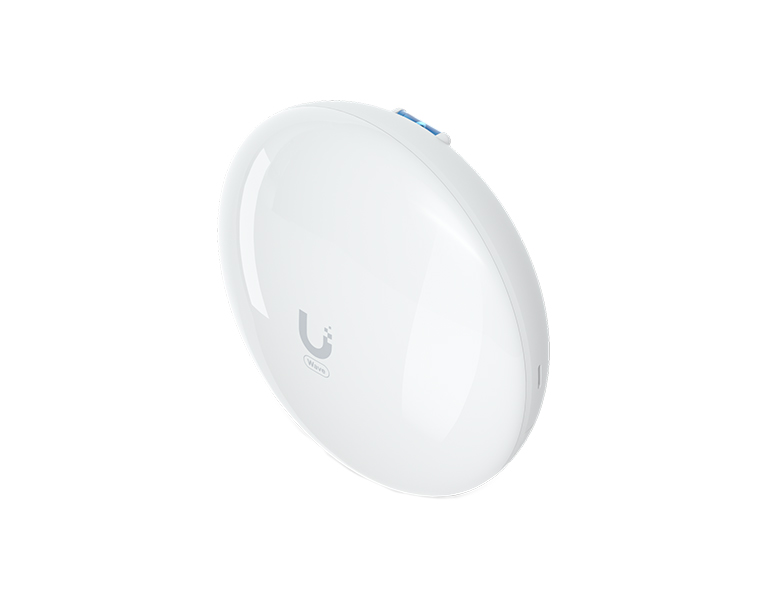

The Ubiquiti Wave-Pico is a 60 GHz point-to-multipoint (PtMP) client device with built-in 5GHz Wifi 6 (802.11ax) backup radio. Max link range when used with Wave-AP is 1.3 km or 0.9 km when used with Wave-AP-micro. The throughput of the device is 2 Gbps(1 Gbps duplex) and 5 GHz backup can reach up to 800 Mbps. Unit is euiped with 1 Gbps LAN port with PoE 48V DC support. To simplify setup, the device is equipped with integrated Bluetooth to connect to the UISP mobile app or there is an option to setup via web interface.
Key features:
• Range up to 1.3 km when using Wave AP
• Power supply via PoE
• Throughput in the 60 GHz band 2000 Mbps, in the 5 GHz band up to 800 Mbps
• Integrated Bluetooth for setup via the UISP mobile app
* Distance depends on total radiated power, which may vary from country to country
Before putting the link into operation, it must first be registered on the 60ghz.ctu.cz portal in accordance with VO-R/12.
Package contents:
• Device
• Device holder for 20 to 53 mm diameter loops
• Gigabit adapter 48V DC 0.5A
• QuickStart
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Mechanical | |

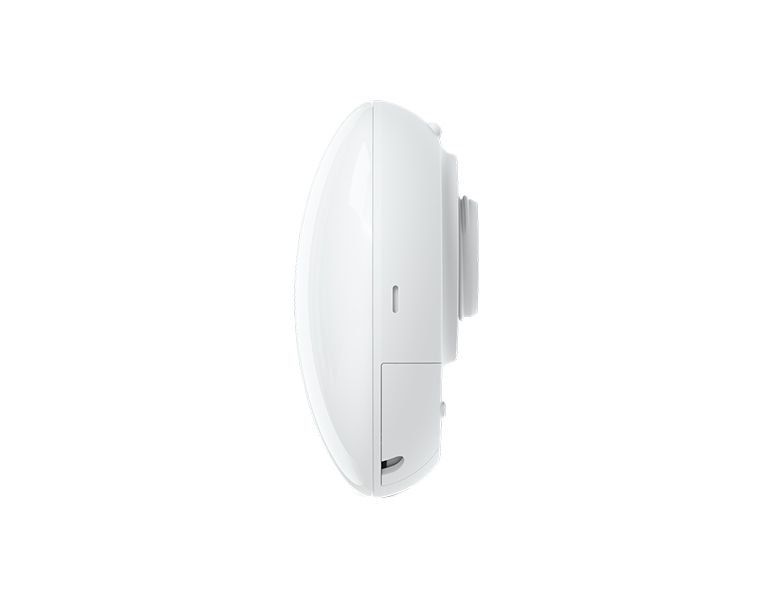

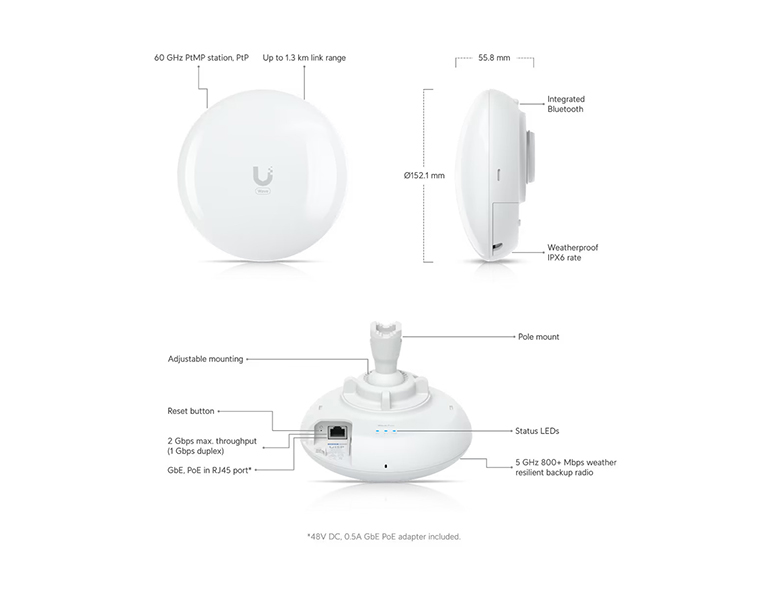

| Dimensions | Ø152.1 x 55.8 mm |
| Weight | Without mount: 347 g With mount: 409 kg |
| Enclosure materials | UV stabilized plastic polycarbonate |
| Mount material | UV stabilized plastic polycarbonate |

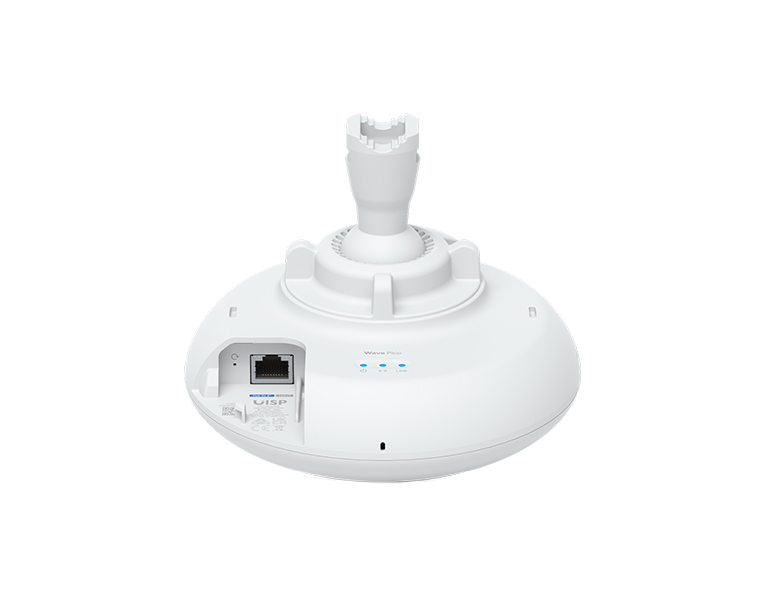

| Pole mount diameter | 20 to 53.1 mm on pipe outer diameter |
| Wind loading | 31.3 N at 200 km/h |
| Weatherproong | IPX6 |
| Hardware | |
| Processor | Dual-core ARM® Cortex® -A53 cores at 1GHz |
| Memory | DDR3L 512MB |

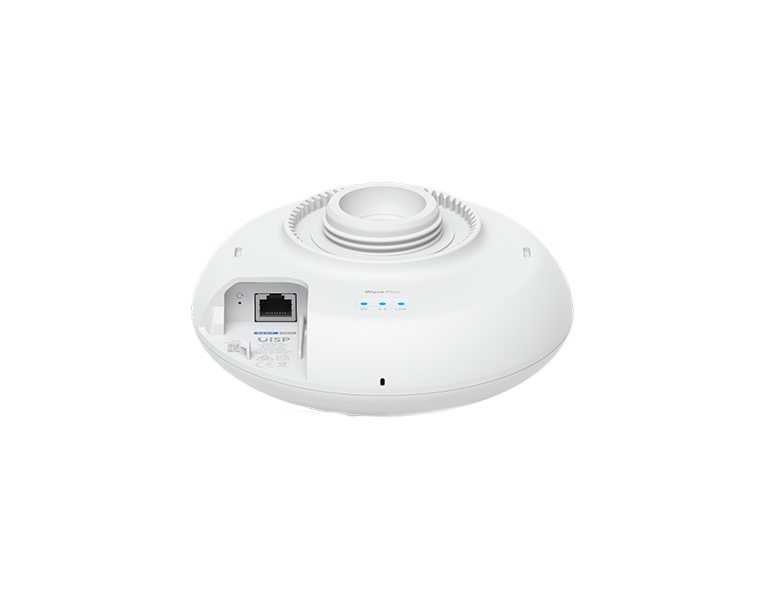

| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 10W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only |
| Power supply | 48V DC, 0.5A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch |
| Supported voltage range | 44–54V DC 22–27V DC |
| Button | Factory reset |

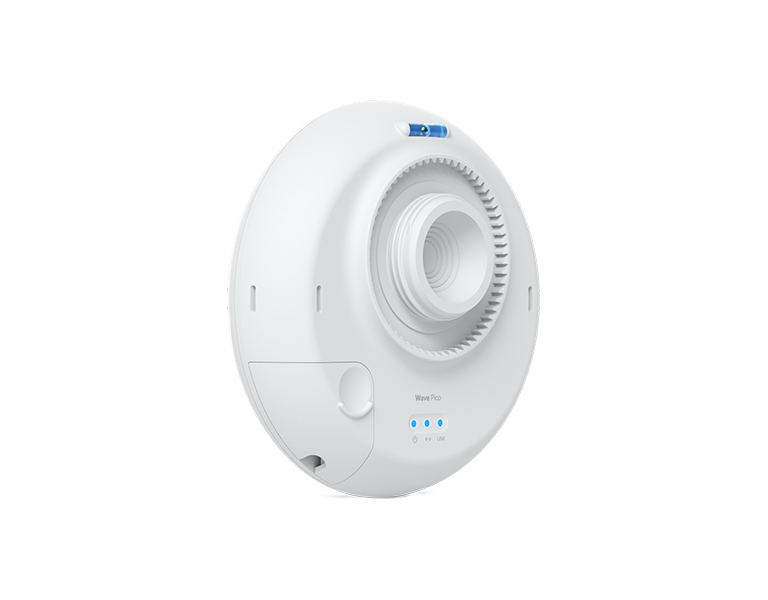

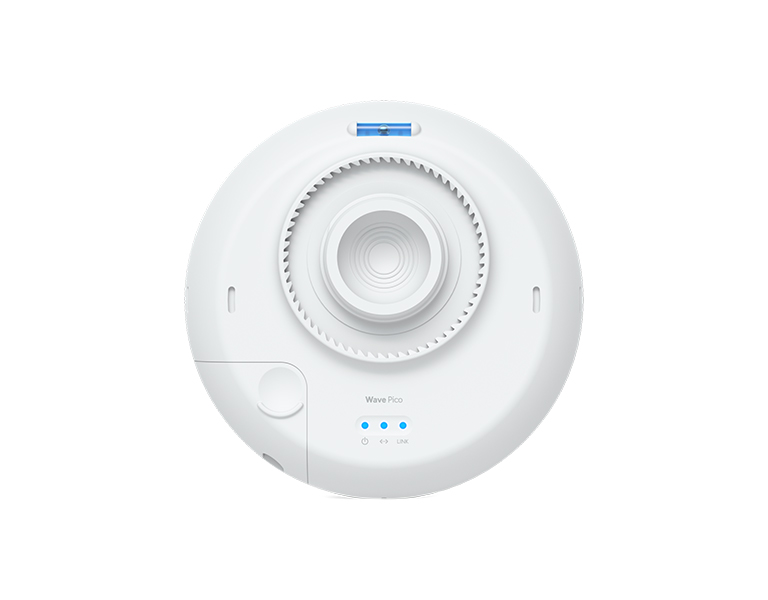

| LEDs | Power, Ethernet, Link |
| Operating temperature | -40 to 60° C |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE |
| Software | |
| Operating mode | PtMP station, PtP |
| Ubiquiti specic features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router* mode *Router is available in PtMP station mode only. |
| Application requirements | UISP web: Version 2.4.61 and later UISP mobile iOS™: Version 2.32.0 and later UISP mobile Android™: Version 2.31.9 and later |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | Up to 1.3 km (Wave AP) Up to 0.9 km (Wave AP Micro) |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends onregulatory region |
| GPS | Yes |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends onregulatory region |
| Modulation | 16QAM, QPSK |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 6° Elevation: 3 dB 6° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* | US/CA U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz *Depends onregulatory region |
| Worldwide | 5180 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 9 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 15 dB |
| Beamwidth | Azimuth: 3 dB 50° Elevation: 3 dB 50° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing Blue: Ethernet traffic detected |
| Links | White: 5GHz link Blue: 60GHz link |
