• 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
• Pocket-size – Ideal for home and travel use
• Supports Router, Repeater, Client, AP and hotspot operation modes
• Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
• Easy installation in minutes

Multiple Operating Modes
Ideal for Home and Travel Use
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.

During Travel
• Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.

*Travel Streaming with Chromecast and Amazon Fire TV Stick Instantly Share Internet Connection during Travel.

Hotspot Mode
• Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.

At Home
• Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.

• Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.

• Access Point Mode
Create a wireless network for Wi-Fi devices.

Portable and Compact - Suitable for Home and Travel

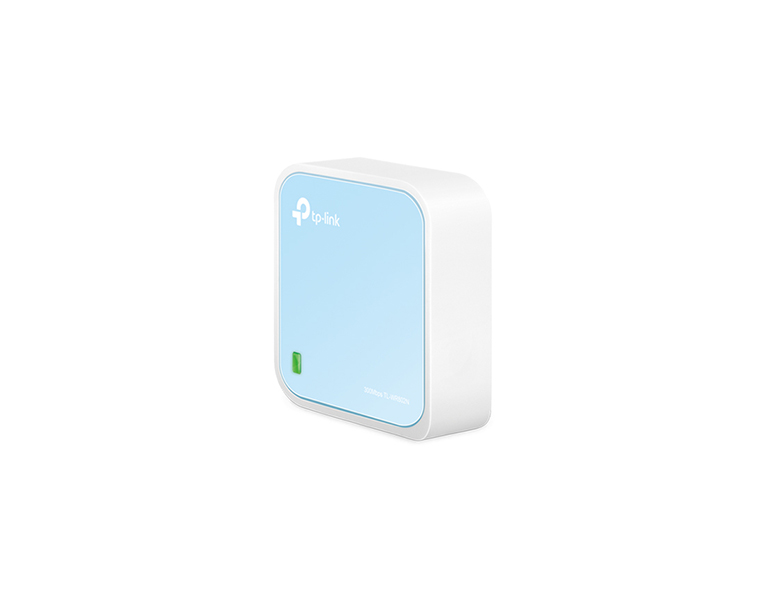

The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.

Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone/USB charger.

Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων:	Επισκευή - Αντικατάσταση:
20 ημέρες	36 μήνες

HARDWARE FEATURES
Interface	1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button
External Power Supply	5VDC /1A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (WxDxH)	57 x 57 x 18 mm
WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	150M: -72dBm@10% PER 72M: -75 dBm@10% PER 54M: -78 dBm@10% PER 6M: -92 dBm@10% PER
Transmit Power	CE: <20dBm(2.4GHz) FCC: <30dBm
Wireless Modes	Wireless Router Mode, Range Extender Mode, Client Mode, Access Point Mode, Hotspot Router Mode
Wireless Functions	Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security	WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Working Modes	Wireless Router, Range Extender, Access Point
WAN Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
DHCP	Server, DHCP Client List, Address Reservation
Quality of Service	WMM, Bandwidth Control
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Controls, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP and MAC Address Binding
Protocols	IPv4, IPv6
Management	Access Control, Local Management, Remote Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Nano Router TL-WR802N Quick Installation Guide RJ-45 Ethernet Cable Power Adapter USB Cable
System Requirements	Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
