• 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition imag • Outputs max. 8 MP (3840 × 2160)@25/30 fps • H.265 codec, high compression rate, ultra-low bit rate • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way • 12 VDC/PoE power supply • IP67 protection • Sound and light alarm (red and blue lights) • SMD 4.0 • Supports AI SSA and one-tap arming and disarming • SMD area can be set in warm light areas that support triggering alarms. |
Series Overview

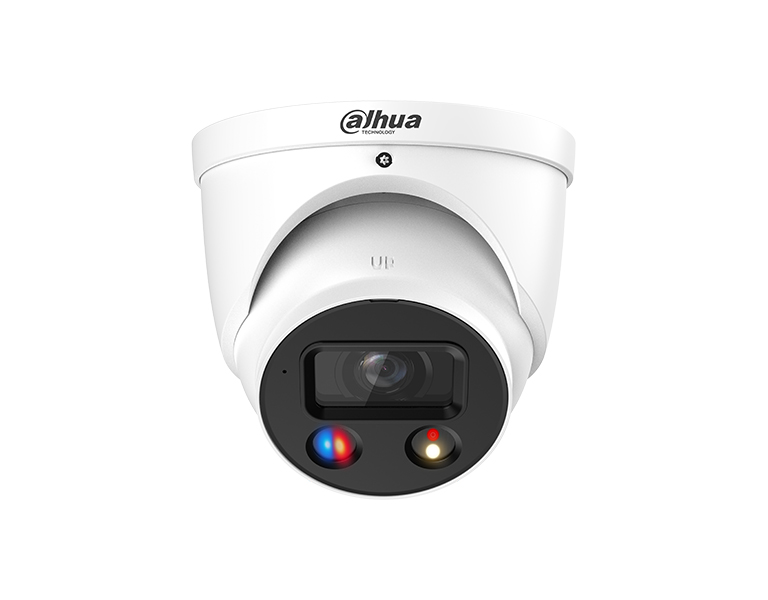

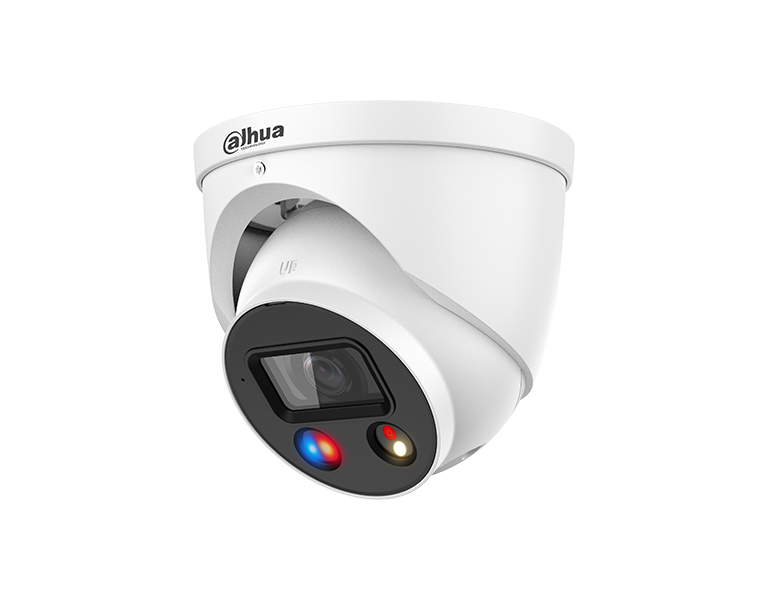

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Acupick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Functions
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 36 μήνες |
SPECIFICATIONS | |
Camera | |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 3840 (H) × 2160 (V) |
ROM | 128 MB |
RAM | 2 G |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 30 m (IR) Up to 30 m (warm light) |
Illuminator On/Off Control | Auto/ manual |
Illuminator Number | 1 (IR LED) 1 (warm light) |
Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Focal Length | 2.8 mm |
Mount Type | M12 |
Field of View | H: 106°; V: 55°; D: 125° |
Iris Type | Fixed |
Close Focus Distance | 1.5 m |
DORI Distance | Detect: 66.0 m Observe: 26.4 m Recognize: 13.2 m Identify: 6.6 m |
Intelligent | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD | SMD 4.0 |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+ Smart H.264+ |
AI Coding | AI H.265; AI H.264 |
Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 3 streams |
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
BLC | Yes |
HLC | Yes |
Bit Rate Control | CBR/VBR/ABR |
Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Day/Night | Auto(ICR)/Color/B/W |
WDR | 120 dB |
Scene Self-adaptation | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Noise Reduction | 3D NR |
Mirror | Yes |
Smart Illumination | Yes |
Defog | Yes |
Privacy Masking | 4 areas |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
LDC | Yes |
Audio | |
Built-in MIC | Yes |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Built-in speaker | Yes |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
User/Host | 20 (Total bandwidth: 64 M) |
Storage | FTP, SFTP, Micro SD card (Support max. 256 G), NAS |
Browser | IE: IE 9/11 Chrome Firefox |
Management Software | Smart PSS, DSS, DMSS |
Mobile Client | IOS, Android |
Cyber Security | Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/ MAC fltering;Generaton and importng of X.509 ce rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade |
Certification | |
Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: 5mA 3V–5 VDC |
Alarm Output | 1 channel out: 300mA 12 VDC |
Power | |
Power Supply | 12 VDC/PoE |
Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE) |
Environment | |
Operating Conditions | –40 °C to +60 °C |
Operating Humidity | ≤95% |
Protection Grade | IP67 |
Structure | |
Casing | Metal |
Dimensions | 110.9 mm × Φ122.0 mm |
Net Weight | 745 g |
Gross Weight | 920 g |
