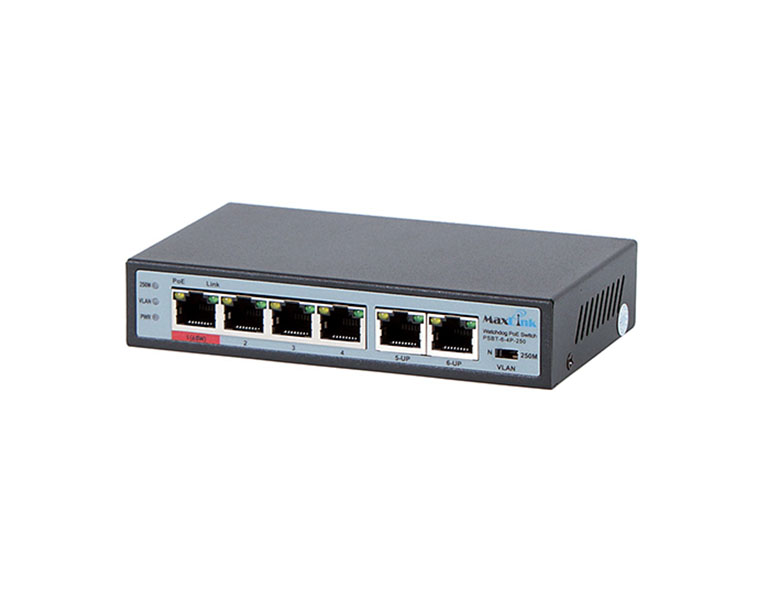

MaxLink PSBT-6-4P-250 PoE switch, 6x LAN/4x PoE 250m, 802.3af/at/bt
Κωδικός προϊόντος:
PSBT-6-4P-250
Κατασκευαστής Maxlink
Τιμή πώλησης:
29,50 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 23,79 €
Διαθεσιμότητα:
Κόστος Μεταφορικών:
- Περιγραφή
- Χαρακτηριστικά
- Λήψεις
- Γνώμες πελατών
MaxLink PSBT-6-4P-250 PoE switch, 6x LAN/4x PoE 250m, 802.3af/at/bt
MaxLink PSBT-6-4P-250 is 6 port 10/100Mbps unmanaged switch with 4 PoE ports. Switch automatically detecting and powering 802.3af/at (up to 30W/port) devices on 1 - 4 ports. 5th and 6th ports are normal ethernet ports without PoE functionality as uplink ports. Total PoE budget for devices is 65W with external power source.
Port 1 additionally supports standard 802.3bt, so you can power your device with up to 60W!
Manual mode switch
1. Normal "N": The switch supplies the device at a distance of no more than 100m. The port-to-port throughput is 10/100Mbps.
2. VLAN: Ports are logically separated from one another, preventing unwanted broadcast storms in this mode. The switch supplies power to the device up to 100m and the portability to the port is 10/100Mbps.
3. 250m: Long Range Mode. Switch powering devices up to 250m with a reduced 10Mbps throughput per port.
With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af/at PoE standard.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Network Port | 3x 10/100Mbps PoE RJ45 port (port 2～port 4) 802.3af/at 1x 10/100Mbps PoE RJ45 port (port 1) 802.3af/at/bt 2x 10/100Mbps Non-POE RJ45 port (port 5, 6) |
| Transfer Rate | 100Mbps full Duplex, 10 or 100Mbps Half Duplex Network interface: 10BASE-T or 100BASE-TX Ethernet RJ-45 |
| Performance | bandwidth: 1.2Gbps (no block) network delay (100 to 100Mbps): maximum 20 μs (using 64 byte packet) MAC address capacity: 1K Frames filter and transfer rate: 10M port maximum 14,800pps 100M port maximum 148,800pps |
| Network protocol and standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet |
| POE pin | 1/2(+), 3/6(-) |
| LEDs indicator | Power - PWR Link/PoE 250M/VLAN |
| Power | Total power: 65W (All PoE port, port 1~port 4) single port max. 30W, (port 1 up to 60W) Input power: 65W; 52V @ 1.25A DC output power |
| Dimensions(LxWxH) | 138mm x 81mm x 22mm |
| Environment | Operating Temperature: 0°~40°C Storage Temperature: -30℃~70℃ Working Humidity: 10%~90% (Non-condensing) Storage Temperature: 5%~90% (Non-condensing) |
| EMC | CE Class B FCC Part 15, Class B VCCI Class B, RoHS |
| Package contents | Device Power adapter 52V/2.5A Power cord |
