MaxLink POE-PAN16-G Gigabit POE panel 16 ports, 1U for rack 19

Κωδικός προϊόντος:
POE-PAN16-G
Κατασκευαστής Maxlink
Τιμή πώλησης: 140,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 112,90 €
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών

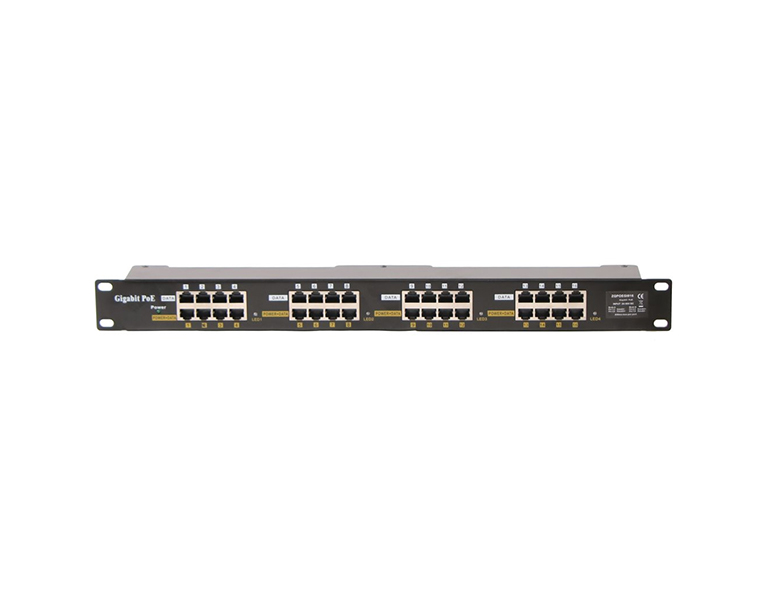

MaxLink POE-PAN16-G Gigabit POE panel 16 ports, 1U for rack 19", shielded, black

The 16 port gigabit PoE panel is used 10/100/1000M Ethernet, the upper Rj45 sockets is for “LAN/Switch/PC” 1/2&3/6&4/5&7/8 are transmitting data. The under RJ45 (power +data) socket is to deliver data and power: 1/2&3/6&4/5&7/8 transmitting data, 1/2(-)&3/6(+) for power. Passive POE is composed of 16 set of Rj45 sockets and two 60V DC power jack. Input power requests 120W or more AC TO DC power converter. The input dc hole diameter is 2.1mm and the other end OD is 5.5mm.
Each socket provides protection against short overflow (current protection 650mA+15%-15%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC DC power converter is 10W per RJ45 set (1 set = 2 x RJ45 sockets). For example, 16 x 10W = 160W for 16 port Passive PoE panel.
The configuration size of panel is 1U (height), 19” (width) and 52mm (thickness), as is available to answer market demand and convenient to be installed directly.

Current LED signaling
• 0-20 mA (no load)
• 0-400 mA (green LED)
• Higher than 400 mA (red LED)

Features:
• USE 10/100/1000M Gigabit Ethernet
• Flexible power (DC 24V TO 57V)
• Each Port Current Protection (650mA+/-15%)
• Built-in LED Indicator
• For 19’’ Rack

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 12 μήνες
Specifications
Type of product:  PoE injector
Gigabit LAN:  Yes
Ethernet speed [Mbps]:  10/100/1000
Depth [mm]:  50
Width [mm]: 483
Height [mm]: 45
Rackmount:  Yes
Operating temperature [°C]:   0 up to 40
Shielding:  Yes
LED indication:  Yes
Pin powering:  4,5 (+), 7,8 (-), 1,2 (-), 3,6 (+)
PoE out ports:  16
The input voltage: 24 .. 57V DC
Δεν υπάρχουν αξιολογήσεις για το προϊόν ακόμη.
